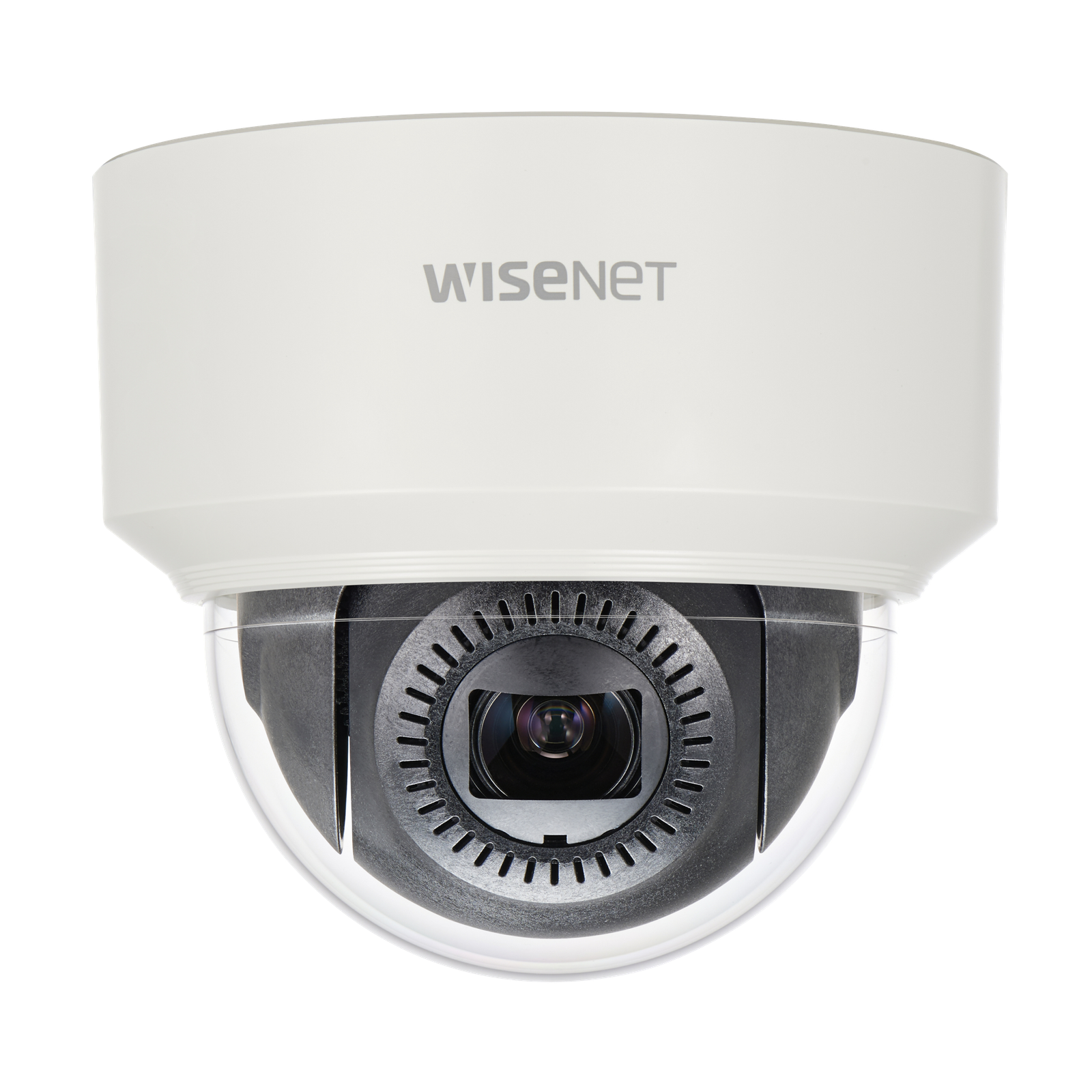

Hanwha Techwin WiseNet X Series XND-6085V 2MP Network IP Security Dome Camera with vari-focal lens 4.0x (4.1~16.4mm)

Description

XND-6085V

2M H.265 Camera (extraLUX)

Compression : H.265, H.264, MJPEG,
Field of View (Horizontal) : 100°Field of View 26°Field of View
Max. FPS and Resolution : 60fps at 1080P
Lens Type : Motorized (Automatic Zoom) Lens
Lens Size : 4.1~16.4mm Lens
Sensor Type : CMOS
Sensor Size : 1/2″ Sensor
Max. Storage Capacity : 512GB Storage Capacity
Color : White
Environmental : Indoor
Sensor Size : 1/2″

Product Specification

• Video
  Imaging Device		1/2″ 2MP CMOS
  Resolution		1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
  Max. Framerate		H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  Min. Illumination		Color: 0.004Lux(F0.94, 1/30sec) BW: 0.0004Lux(F0.94, 1/30sec)
  Video Out		CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
  Lens
  Focal Length (Zoom Ratio)		4.1~16.4mm(4x) motorized varifocal
  Max. Aperture Ratio		F0.94(Wide)~F2.4(Tele)
  Angular Field of View		H: 100.0°(Wide)~26.2°(Tele) / V: 54°(Wide)~14.8°(Tele) / D: 116.0°(Wide)~30.0°(Tele)
  Min. Object Distance		0.7m(2.30ft)
  Focus Control		Simple focus
  Lens Type		DC auto iris
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range		Remote adjustment (Max. 200cycles) -175°~175° / -73°~73° / -175°~175°
  Operational
  Camera Title		Displayed up to 85 characters
  Day & Night		Auto(ICR)
  Backlight Compensation		BLC, HLC, WDR, SSDR
  Wide Dynamic Range		150dB
  Digital Noise Reduction		SSNRⅤ
  Digital Image Stabilization		Support
  Defog		Support
  Motion Detection		8ea, 8point polygonal zones
  Privacy Masking		32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  LDC		Support
  Electronic Shutter Speed		Minimum / Maximum / Anti flicker (2~1/12,000sec)
  Video Rotation		Flip, Mirror, Hallway view(90°/270°)
  Analytics		Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
  Alarm I/O		Input 1ea / Output 1ea
  Alarm Triggers		Analytics, Network disconnect, Alarm input
  Alarm Events		File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset
  Audio In		Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  Audio Out		Line out, Max.output level: 1Vrms
  Network
  Ethernet		RJ-45(10/100BASE-T)
  Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
  Audio Compression		G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
  Smart Codec		Manual(5ea area), WiseStreamⅡ
  Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming		Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
  Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  Application Programming Interface		ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
  General
  Web Viewer		Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
  Edge Storage		Micro SD/SDHC/SDXC 2slot 512GB
  Memory		1024MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity		-30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C
  Storage Temperature / Humidity		-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
  Certification		IK08
  Input Voltage		PoE(IEEE802.3af, Class3), 12VDC
  Power Consumption		PoE : Max 10.2W 12VDC : Max. 8.6W
  Mechanical
  Color / Material		Ivory / Aluminum
  Product Dimensions / Weight		Ø160×140.0mm(6.3″x5.51″), 1.25kg(2.76 lb)

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
