Brand: Uniview
219.00$
In stock
Key Features

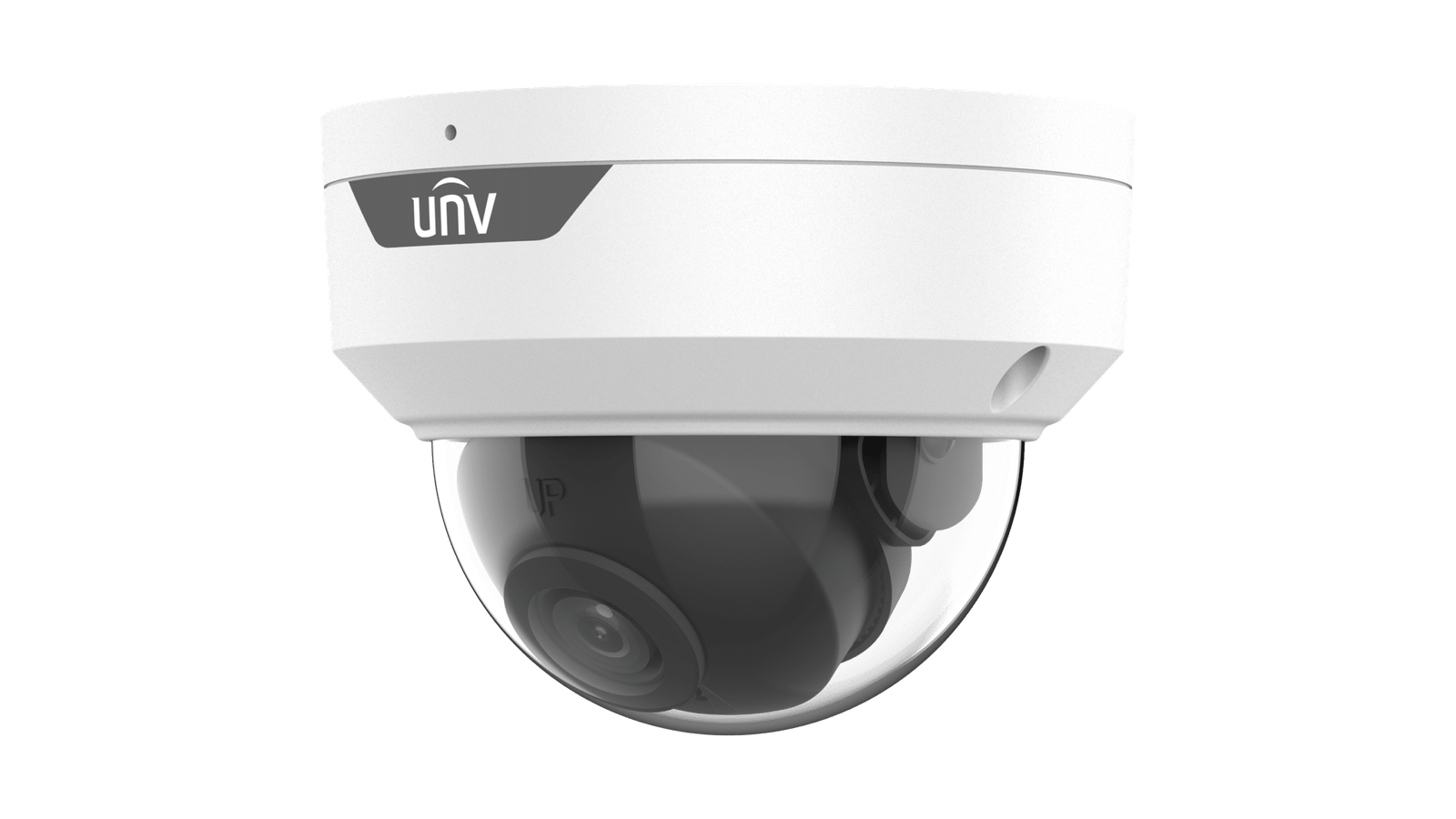

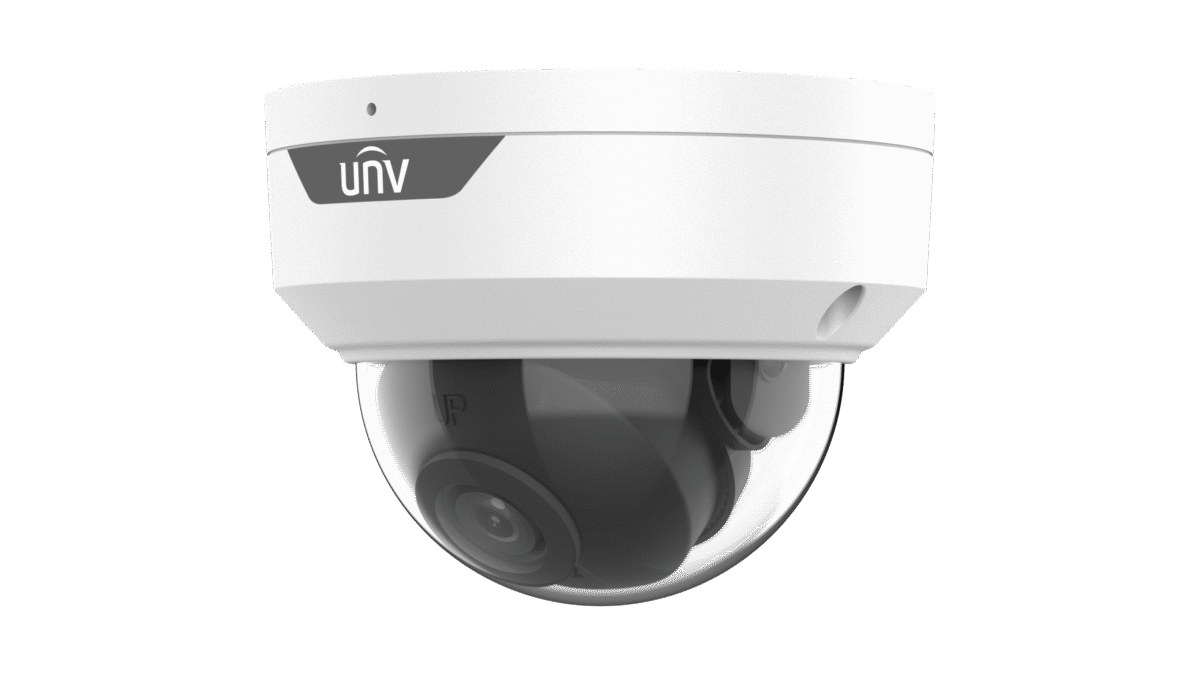

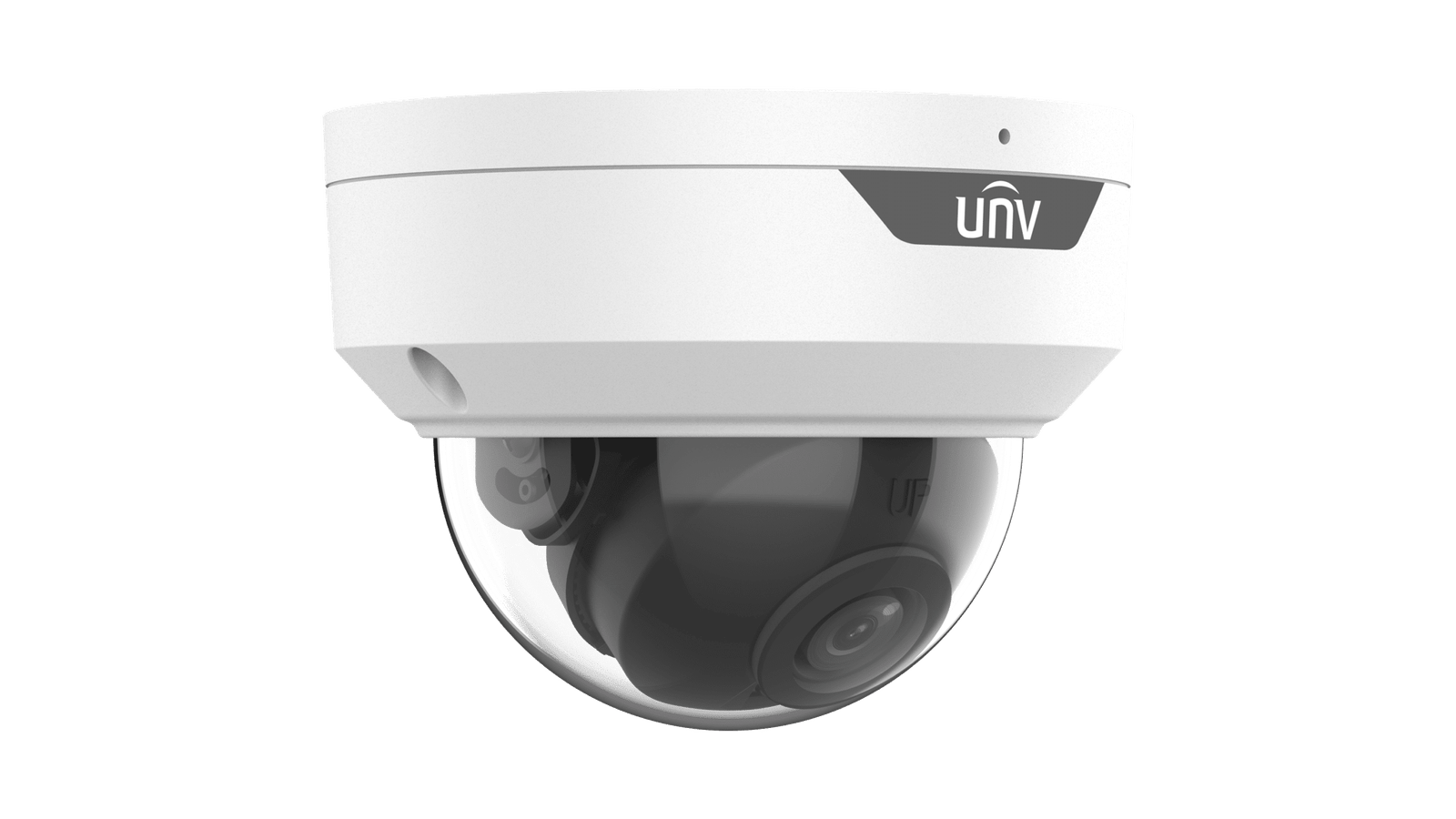

Uniview UAC-D128-ADF28MS 8MP Dome Camera a new level of detail with our high-quality image.
This Uniview UAC-D128-ADF28MS 8MP Dome Camera fixed IR dome analog camera with a high-performance 1/2.7-inch CMOS sensor and 3D noise reduction technology. It supports flexible switch among TVI/CVI/AHD/CVBS through DIP switches, effectively enhancing product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.
The Uniview Dome Camera combines sleek style with serious security. The 2.8mm fixed lens provides a wide-angle view, while smart IR night vision keeps everything visible even in total darkness. Designed to be weather-resistant and vandal-proof, this camera is built to perform — rain, shine, or rough conditions.
Whether you’re upgrading your system or starting new, the UAC-D128-ADF28MS is a smart, reliable choice for anyone who wants strong security without the complicated setup. Quietly powerful, always on — just the way security should be.
Buy Uniview UAC-D128-ADF28MS from SecureItGlobal Bangladesh. We have a large collection of the latest Uniview Products for your Security.
Sensor | ||||||||
Pixel | 8 MP | |||||||
Sensor Size | 1/2.7″ CMOS | |||||||
Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) |
|||||||
Lens | ||||||||
Focus | 2.8 mm | 4.0 mm | ||||||
Lens Mount | M12 | |||||||
Angle of View (H) | 109.1° | 86.8° | ||||||
Angle of View (V) | 61.0° | 49.4° | ||||||
Angle of View (D) | 126.7° | 99.9° | ||||||
Illuminator | ||||||||
Illuminator Number | One IR illuminator | |||||||
Illumination Distance | 30m | |||||||
Lifetime | ≥ 60000 hours | |||||||
Video | ||||||||
Resolution | 4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) |
|||||||
Frame Rate | CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
|||||||
Shutter Time | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s |
|||||||
Image | ||||||||
Exposure Mode | Four modes: Global (default), BLC, HLC, WDR | |||||||
Day/Night | Three modes: Auto (default), Day, Night | |||||||
Digital Noise Reduction | 2D/3D | |||||||
White Balance | Two modes: Auto (default), Manual | |||||||
WDR | 120 dB WDR | |||||||
Smart IR | Support | |||||||
Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
Digital Defog | N/A | |||||||
Audio | ||||||||
Built-in Mic | Support | |||||||
Camera Audio | CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps | |||||||
Interface | ||||||||
Power Interface | 5.5 mm Power Interface | |||||||
Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
Operating Environment | ||||||||
Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) | |||||||
Humidity | ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 4kV for power&4kV for video output interfaces | |||||||
General | ||||||||
Power | DC 12 V ± 25% | |||||||
Power Consumption | MAX 3.7W | |||||||
Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount | |||||||
Dimensions | Φ109mm*83mm (diameter*height) | |||||||
Material | Metal | |||||||
Weight | 395g(0.87lb) | |||||||
OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE-LVD (EN 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
