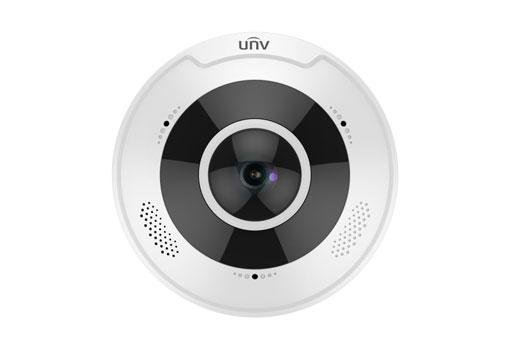

IPC868ER-VF18-B

Camera

Image sensor

1/1.7″, 12.0
megapixel, progressive scan, CMOS

Lens

1.8mm@F2.4

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

1.8

43.8

17.5

8.8

4.4

Angle of View

360°

Shutter

Auto/Manual, shutter
time: 1 ~ 1/100000s

Minimum Illumination

Colour: 0.05Lux
(F2.4, AGC ON)
0Lux with IR

Day / Night

IR-cut filter for
day & night function

Digital noise
reduction

2D/3D DNR

S/N Ratio

>52dB

IR Range

Up to 10m (33ft)

Defog

Digital Defog

WDR

DWDR

Video

Compression

Ultra265, H.265,
H.264, MJPEG

H.264 code profile

Baseline profile,
Main Profile, High Profile

Fisheye Frame Rate

Main Stream: 15fps
(4000*3000, 3000*3000); 25fps (2560*2560);
Sub Stream: 15fps (2000*1500, 2000*2000); 25fps (2000*2000);
Third Stream: 15fps (720*576, 320*288)

Panorama

25fps (3000*2000);
15fps (4000*3000, 3000*2000, 3000*1500)

Frame Rate PTZ

15fps (1920*1080)

ROI

Up to 8 areas

BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Motion Detection

Up to 4 areas

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to
256GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP,
ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible
Integration

ONVIF (Profile S,
Profile G, Profile T), API

Live View Display

Mount Type

Support table, wall,
and ceiling

Interface

Audio I/O

Audio interface

Input: impedance
35kΩ; amplitude 2V [p-p]

Output: impedance
600Ω; amplitude 2V [p-p]

Alarm I/O

2/1

Multiple Alarm
linkage editable

Built-in Mic

Supported

Built-in Speaker

Supported

Serial

1 channel RS485
interface

Network

1 RJ45 10M/100M
Base-TX Auto-adaptive Ethernet

Video Output

1 BNC, impedance
75Ω; amplitude 1V [p-p]

General

Power

DC 12V±25%, PoE
(IEEE 802.3af)

Power consumption:
Max 9.6W

Dimensions (Ø x H)

Φ149 x 51.5mm
(Φ5.87” x 2.0”)

Weight

0.5kg (1.1lb)

Working Environment

-35°C ~ 60°C (-31°F
~ 140°F), Humidity: ≤95% RH

Ingress Protection

IP66

Vandal Resistant

IK10

Reset Button

Supported
