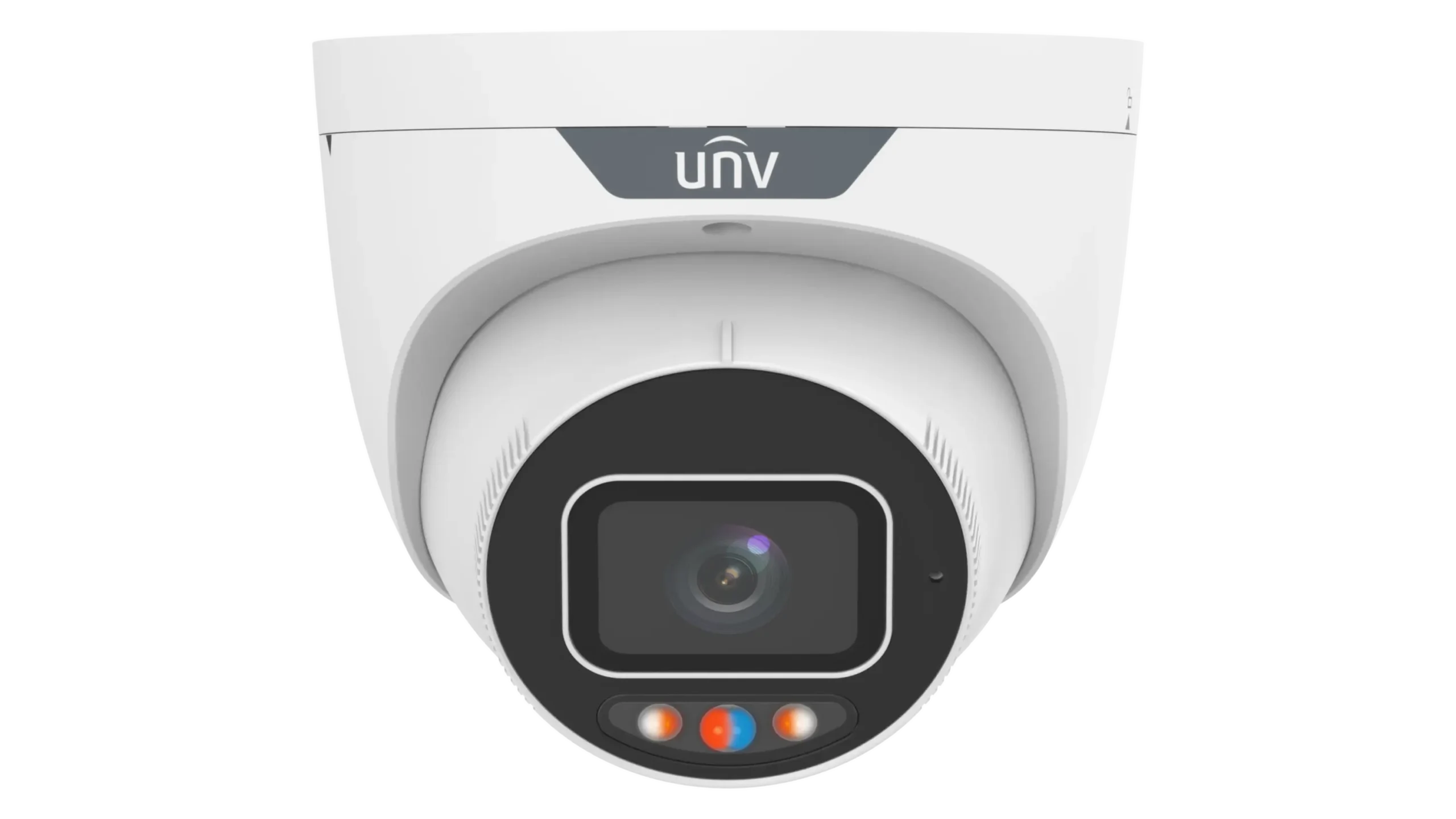

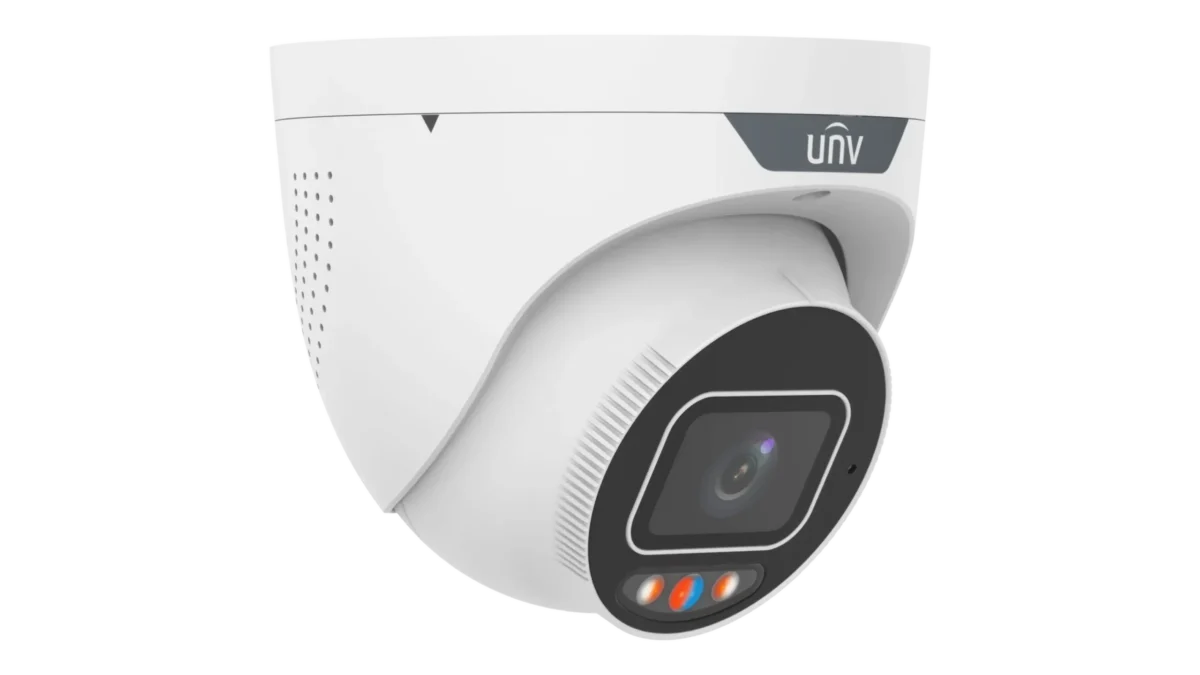

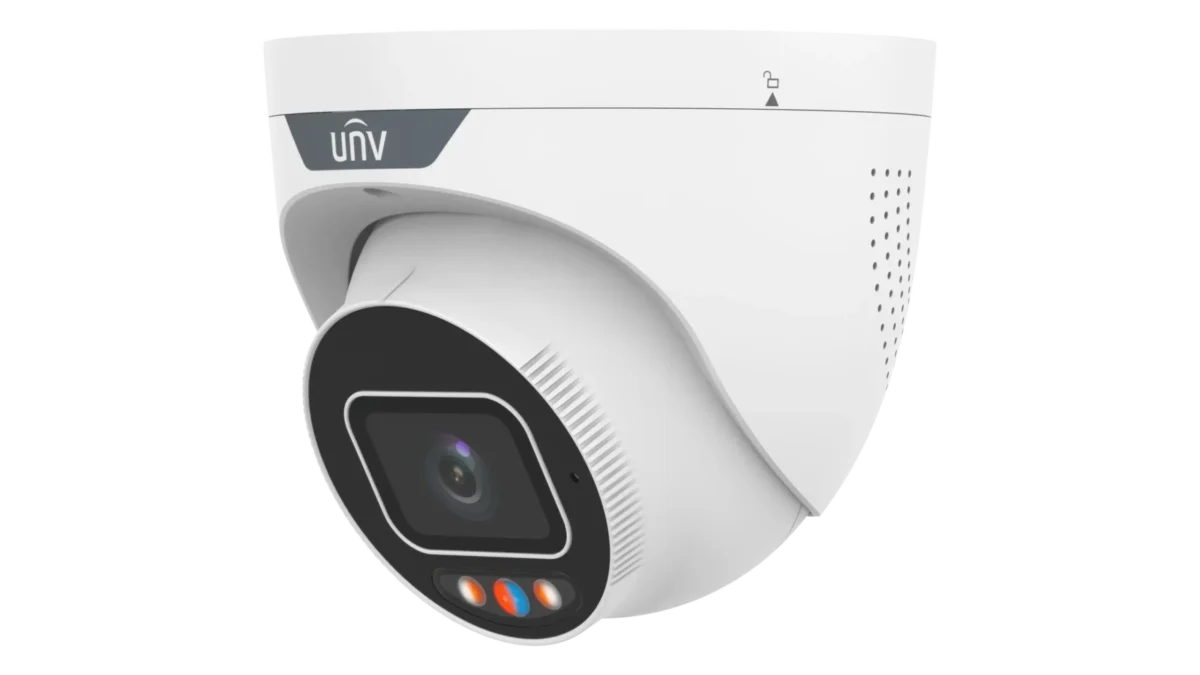

Uniview IPC3635SS-ADF28KMC-I1 5MP Eyeball Camera HD Triguard 2.0 5MP Active Deterrence Security Camera.
The Uniview IPC3635SS-ADF28KMC-I1 is a 5MP eyeball CCTV camera that blends high-quality imaging, intelligent features, and rugged reliability into a sleek, compact design. With its powerful 5MP resolution and wide 2.8mm lens, it delivers crisp, detailed footage across a broad field of view—ideal for covering entrances, hallways, or open spaces. True WDR (Wide Dynamic Range) ensures clear, balanced images in tough lighting conditions, such as bright sunlight or deep shadows. Even in total darkness, the built-in infrared night vision provides dependable clarity. Engineered to withstand the elements, the IPC3635SS-ADF28KMC-I1 boasts an IP67 weatherproof and IK10 vandal-resistant housing—making it a great fit for high-traffic or outdoor areas. with Power over Ethernet (PoE), installation is quick, clean, and hassle-free. If you’re looking for reliable, intelligent security in a compact and stylish form, this 5MP eyeball camera checks all the boxes.
Buy Uniview IPC3635SS-ADF28KMC-I1 from SecureItGlobal Bangladesh. We have a large collection of the latest Uniview Products for your Security.
Camera |
|||||||||
Sensor |
1/2.7″, 5.0 megapixel, progressive scan, CMOS |
||||||||
Minimum Illumination |
Colour: 0.001 Lux (F1.0, AGC ON)0 lux with IR on |
||||||||
Day/Night |
IR-cut filter with auto switch (ICR) |
||||||||
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||||||
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 80° |
Rotate: 0° ~ 360° |
||||||
WDR |
130dB |
||||||||
S/N |
>56dB |
Lens |
|||||||||
Lens |
2.8mm@F1.0 |
4.0mm@F1.0 |
|||||||
Iris |
Fixed |
||||||||
Field of View (H) |
109° |
97.5° |
|||||||
Field of View (V) |
57° |
55° |
|||||||
Field of View (D) |
132.5° |
118.5° |
Illuminator |
|||||||||
IR Range |
Up to 30m (98.4 ft) |
||||||||
Warm Light Range |
Up to 30m (98.4 ft) |
||||||||
Wavelength |
850nm |
||||||||
IR On/Off Control |
Auto/Manual |
Video |
|||||||||
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||||||
H.264 code profile |
Baseline profile, Main profile, High profile |
||||||||
Video Bit Rate |
128 Kbps~16 Mbps |
||||||||
U-code |
Support |
||||||||
OSD |
Up to 8 OSDs |
||||||||
Privacy Mask |
Up to 4 areas |
||||||||
ROI |
Up to 8 areas |
||||||||
Video Stream |
Triple streams |
Image |
|||||||||
Auto Scene Match (ASM) |
Support(Only WDR) |
||||||||
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||||||
Digital Noise Reduction |
2D/3D DNR |
||||||||
Smart IR |
Support |
||||||||
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Audio |
|||||||||
Audio Compression |
G.711U, G.711A |
||||||||
Audio Bitrate |
64 Kbps |
||||||||
Two-way Audio |
Support |
||||||||
Suppression |
Support |
||||||||
Sampling Rate |
8KHZ |
General |
|||||||||
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
||||||||
Power consumption: Max 10.0W |
|||||||||
Power Interface |
Ø 5.5mm coaxial power plug |
||||||||
Dimensions (Ø x H) |
Φ129 x 118mm (Ø5.1” x 4.7”) |
||||||||
Weight |
0.69kg (1.53lb) |
||||||||
Material |
Metal |
||||||||
Operating Conditions |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||||
Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||||
Surge Protection |
4KV |
||||||||
Reset Button |
Support |
