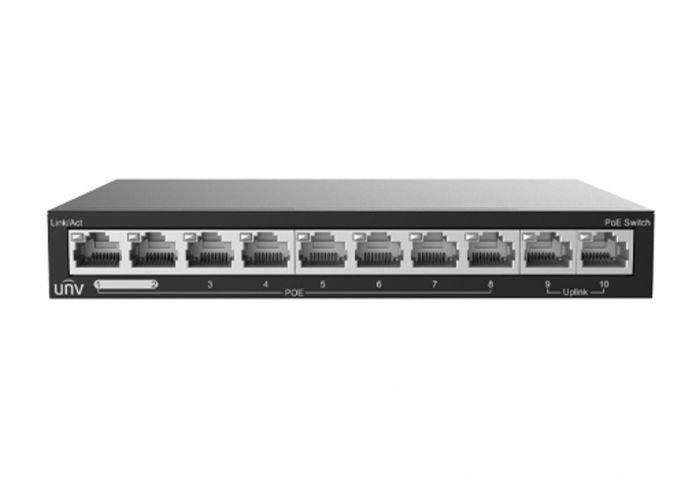

Uniview NSW2020-10T-POE-IN 8-Ch 4K PoE+ Switch with Surveillance (Extend) Mode and Two Uplink Ports Security Accessory

Uniview NSW2020-10T-POE-IN 8PoE+2Port
Uniview NSW2020-10T-POE-IN 8-Ch 4K PoE+ Switch with Surveillance (Extend) Mode and Two Uplink Ports Security Accessory - Image 2

Brand: Uniview

5/5

Condition:New

189.00$

In stock

Key Features

  • Type: Switch
  • Power supply: AC: 100-240V, 50/60Hz
  • Color: Black

Guaranteed Safe Checkout

pcard
Buy Now
Facebook Twitter Instagram Envelope

Description



Uniview NSW2020-10T-POE-IN 8PoE+2Port 8-Ch PoE+ Switch with Surveillance (Extend) Mode and Two Uplink Ports Security Accessory

Uniview NSW2020-10T-POE-IN 8PoE+2Port with port traffic control.

Features:

Multiple working modes to address your business needs: Normal, Secure, and Surveillance
This Switch Support port traffic control
Up to 250m transmission distance on surveillance mode
It Support buffer optimization
Support for secure mode
all downlink ports can communicate only with uplink ports
All metal housing, safe and reliable

Buy Uniview NSW2020-10T-POE-IN 8-Ch 4K PoE+ Switch from SecureItGlobal Bangladesh. We have a large collection of the latest Uniview Products for your Security System.

Choose Related Product

Related Page

Specification:

Model NSW2020-6T-POE-IN NSW2020-10T-POE-IN NSW2020-16T2GC-POE-IN NSW2020-24T2GC-POE-IN
Ports 6×100Mbps network ports (RJ45),including 4 PoE ports 10×100Mbps network ports (RJ45),including 8 PoE ports 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports 24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Standards IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,
IEEE802.3af,IEEE802.3at		 802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,
IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity 1.2Gbps 2Gbps 7.2Gbps 8.8Gbps
Forwarding performance 0.90Mpps 1.49Mpps 5.36Mpps 6.55Mpps
Packet Buffer 768Kbit 1.625Mbit 4M bit 4Mbit
MAC 2K 4K 16K 16K
Dimensions (W×D×H) 160mm x 93mm x 32mm
(6.3″×3.7″×1.3″)		 220mm x 150mm x 44mm(8.7″×5.9″×1.7″) 440mm x 207mm x 45mm(17.3″×8.1″×1.8″) 440mm x 207mm x 45mm(17.3″×8.1″×1.8″)
Weight <0.6kg <1.22kg <4.2kg <4.2kg
Power supply AC: 100-240V, 50/60Hz
PoE 802.3at/af
Max. PoE Power Capacity : 65W
 Max capacity: 120W
Max capacity for single port: 30W		 Max : 250W
capacity for single port: 30W		 Max capacity: 370W
Cooling Fans 0 0 2 2
Mean Time Between Failure (MTBF) >50000 hours
Ambient temperature 0°C-45°C (32°F-113°F)
Operating humidity 10%～90% (noncondensing)
Storage humidity 5%～90% (noncondensing)
Indicator PWR:
Steady on: AC input is normal
Off: No AC input
PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal
LINK/ACT:
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data
Speed:
Off: Linked at 10/100Mbps
On: Linked at 1000Mbps
Working Mode Default(Normal mode) : All ports can communicate with each other.
EXTEND(Surveillance mode): Transmission distance up to 250 meters.		 Default(Normal mode) : All ports can communicate with each other.
VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
EXTEND(Surveillance mode): Transmission distance up to 250 meters.
