Description

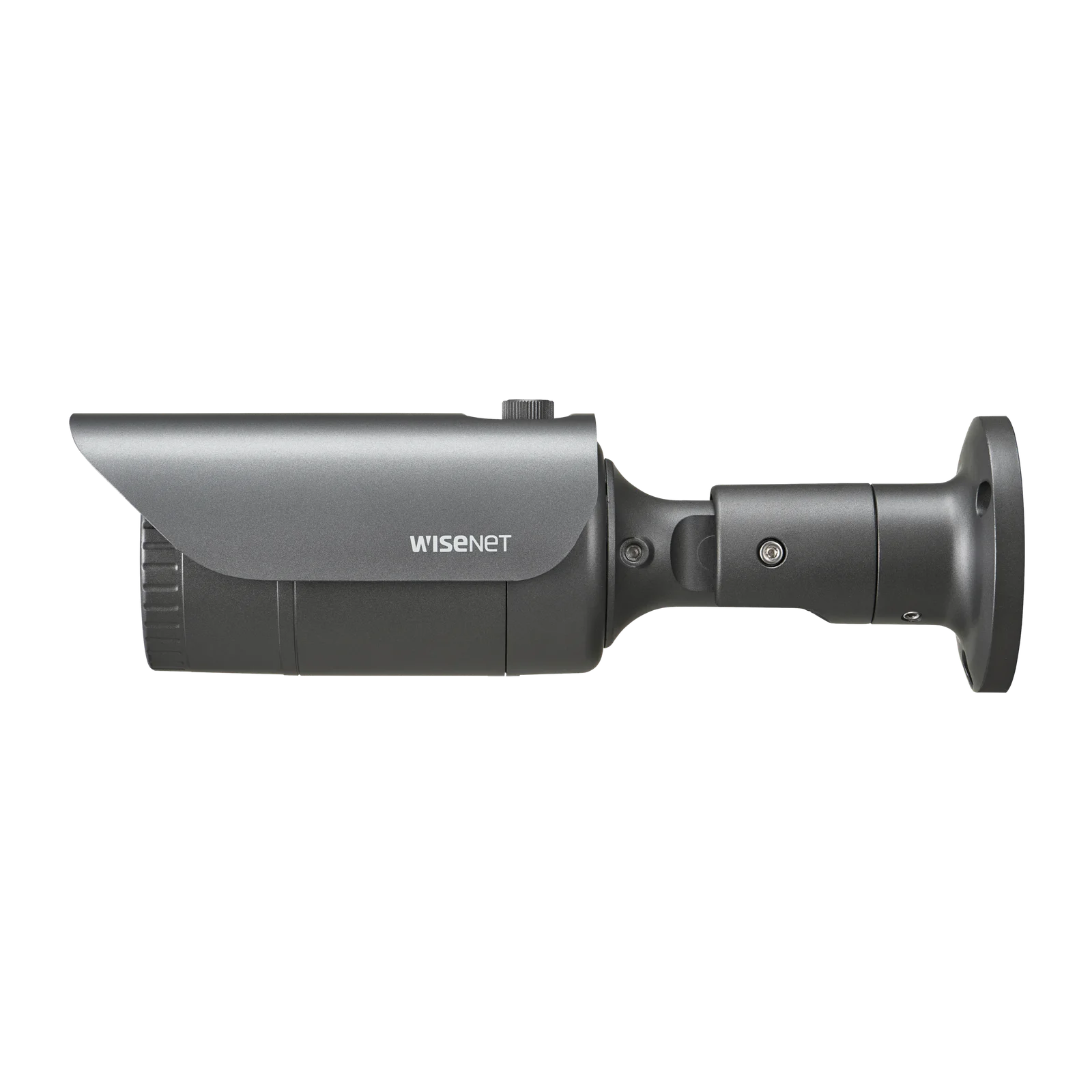

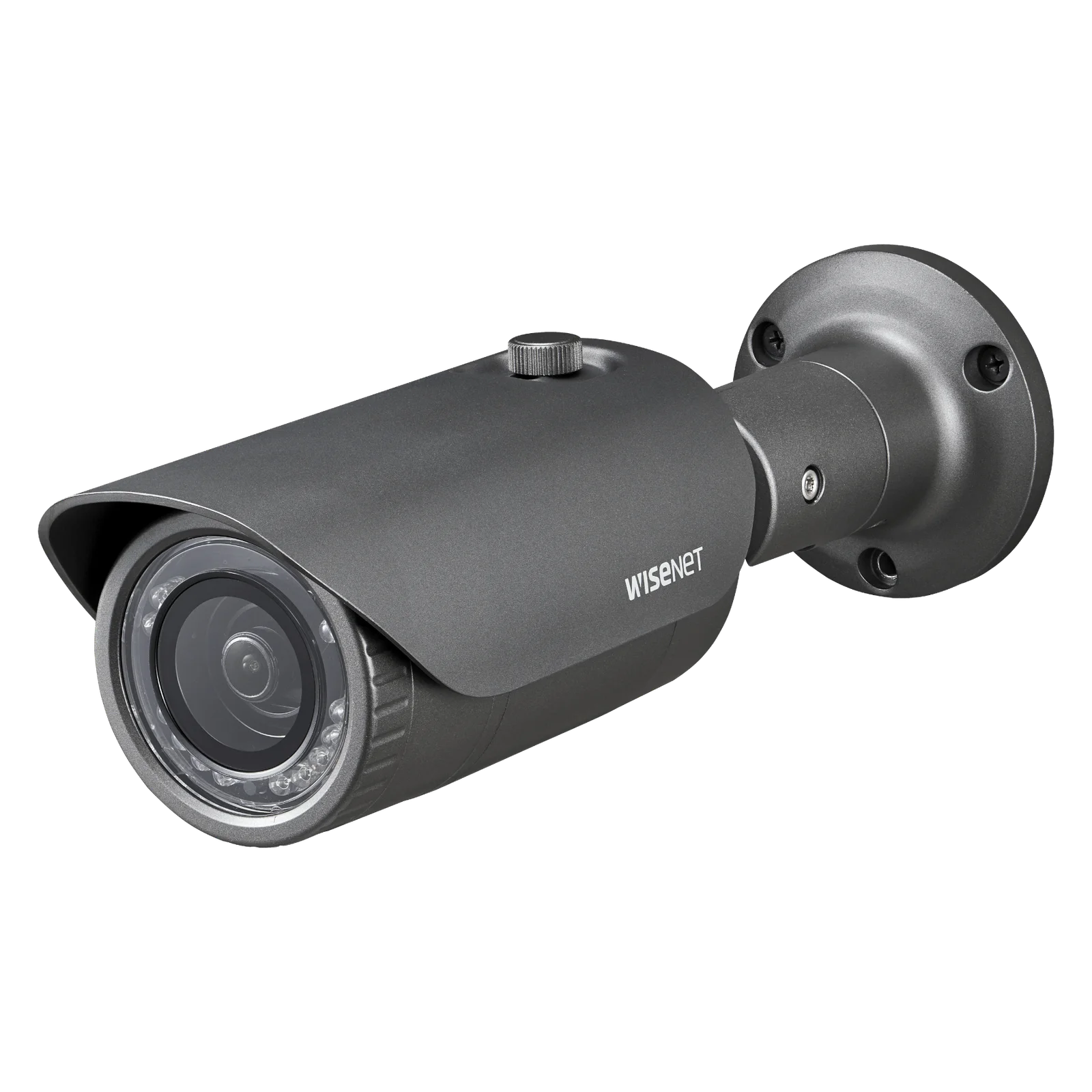

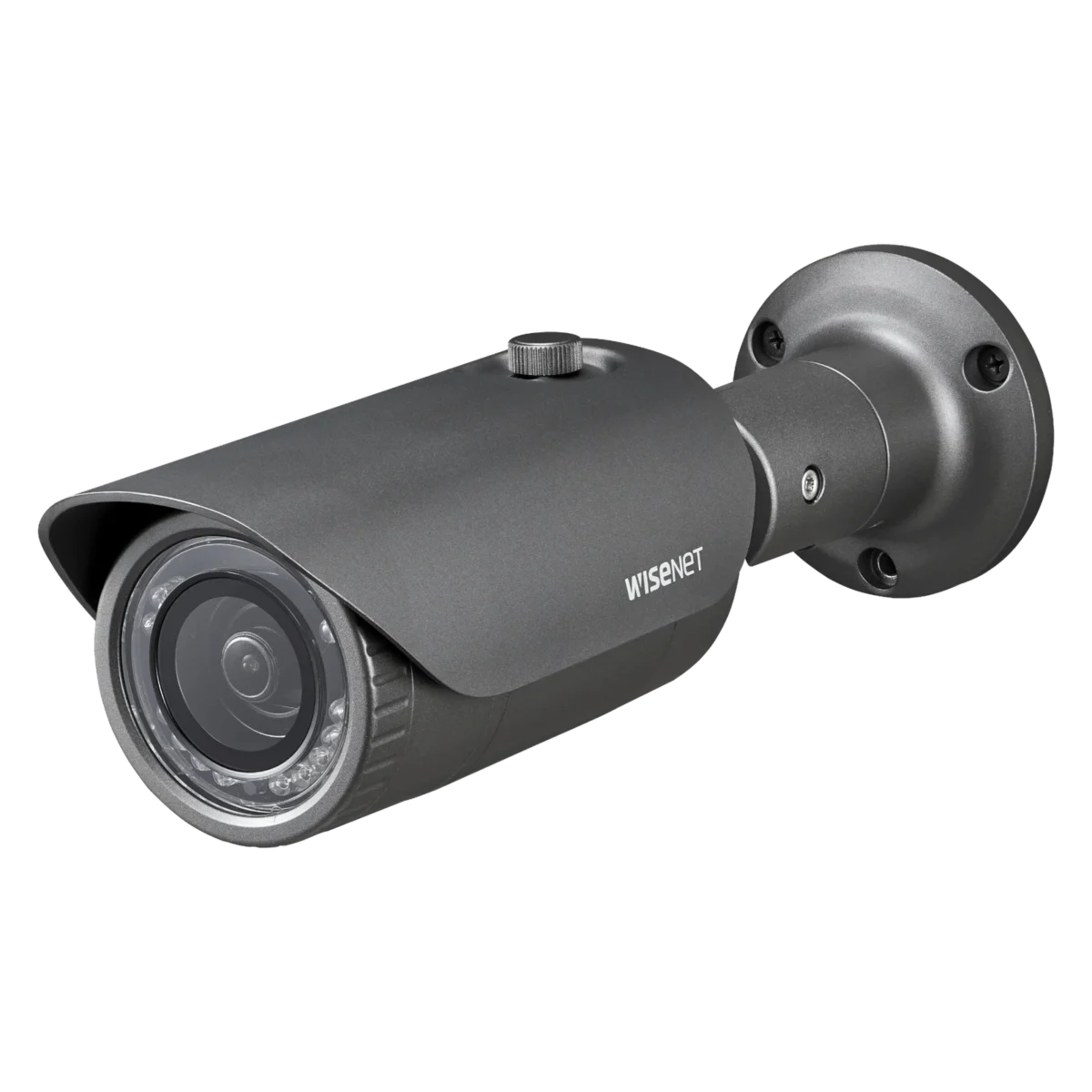

Hanwha Vision HCO-7020RA QHD (4MP) Analog HD+ IR Outdoor Bullet Camera IP66 4.0mm fixed Lens
HCO-7020RA
QHD (4MP) Analog IR Bullet Camera
Pentabrid compatible
- Field of View (Horizontal) : 78.2°Field of View
- Max. FPS and Resolution : 30fps at 4MP
- Lens Type : Fixed Lens
- Lens Size : 4mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3″ Sensor
- Protection Code : IP66 IK10
- Color : Dark Gray
- Material : Aluminum
- Environmental : Outdoor
- Sensor Size : 1/3″
- Aperture : F2.0
Product Specification
-
-
Video
Imaging Device 1/3″ 4MP CMOS Resolution 2560×1440 Max. Framerate 30fps@4M(N), 25fps@4M(P) Min. Illumination Color: 0.27Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)Video Out BNC(AHD), additional CVBS for installation(2Pin connector type) Video Transmission Distance 500m(5C2V Coaxial Cable) Lens
Focal Length (Zoom Ratio) 4.0mm fixed Max. Aperture Ratio F2.0 Angular Field of View H: 78.22°, V: 41.21°, D: 87.91° Min. Object Distance 0.5m(1.64ft) Operational
Day & Night Auto(ICR) Backlight Compensation UserBLC, HLC, DWDR Digital Noise Reduction 2DDNR Motion Detection 4 zones Privacy Masking 2 zones Gain Control Low / Middle / High / Very High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) Video Rotation H-Rev/V-Rev Analytics Motion detection IR Viewable Length 25m(82.02ft) Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -10°CCertification IP66, IK10 Input Voltage 12VDC Power Consumption Max 5W Mechanical
Color / Material Dark Gray / Aluminum Product Dimensions / Weight Ø70.0 x 246.0mm(Ø2.76”x9.69”), 670g(1.48 lb)
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
