Description

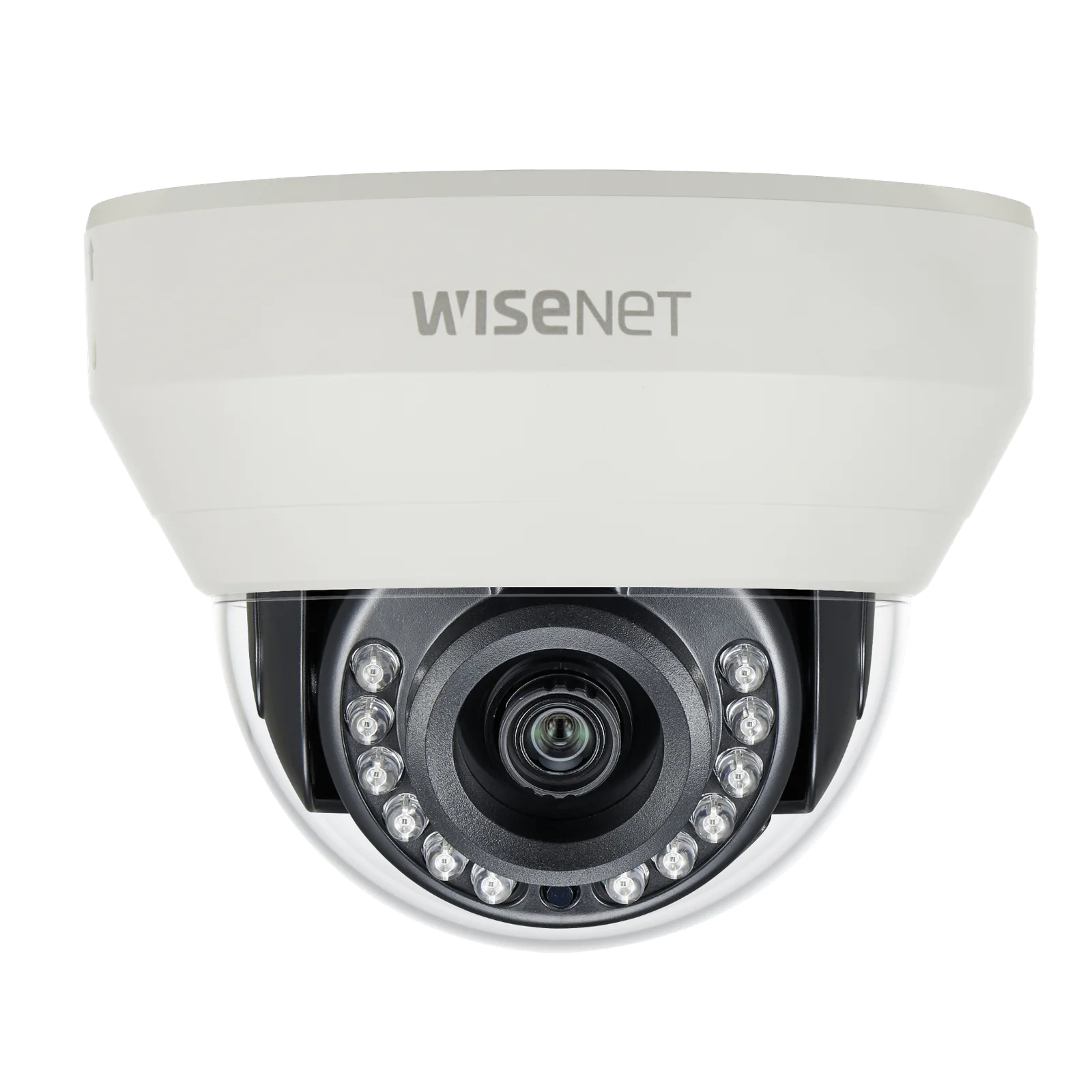

Hanwha Vision HCD-7020RA QHD (4MP) Analog HD+IR Indoor Dome Security Camera with Night Vision 4.0mm fixed lens
HCD-7020RA
Pentabrid compatible
QHD (4MP) Analog IR Dome Camera
- Field of View (Horizontal) : 78°Field of View
- Lens Type : Fixed Lens
- Lens Size : 4mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3″ Sensor
- Color : Ivory
- Environmental : Indoor
- Sensor Size : 1/3″
Product Specification
-
-
Video
Imaging Device 1/3″ 4MP CMOS Resolution 2560×1440 Max. Framerate 30fps@4M(N), 25fps@4M(P) Min. Illumination Color: 0.27Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)Video Out BNC(AHD), additional CVBS for installation(2Pin connector type) Video Transmission Distance 500m(5C2V Coaxial Cable) Lens
Focal Length (Zoom Ratio) 4.0mm fixed Max. Aperture Ratio F2.0 Angular Field of View H: 78.22°, V: 41.21°, D: 87.91° Min. Object Distance 0.5m(1.64ft) Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355° Operational
Day & Night Auto(ICR) Backlight Compensation UserBLC, HLC, DWDR Digital Noise Reduction 2DDNR Motion Detection 4 zones Privacy Masking 2 zones Gain Control Low / Middle / High / Very High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) Video Rotation H-Rev/V-Rev Analytics Motion detection IR Viewable Length 25m(82.02ft) Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Input Voltage 12VDC Power Consumption Max 5W Mechanical
Color / Material Ivory / Plastic Product Dimensions / Weight Ø110.1 x 86.1mm(Ø4.33”x3.39”), 240g(0.53 lb)
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
