Description

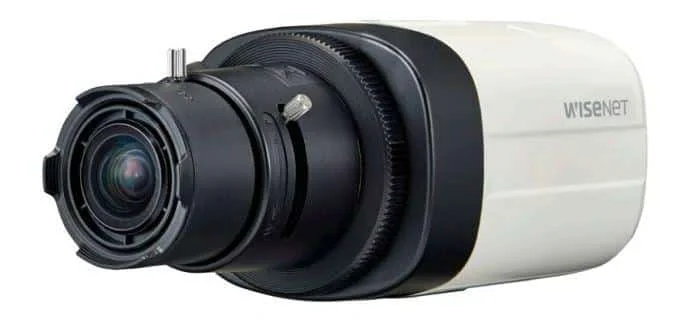

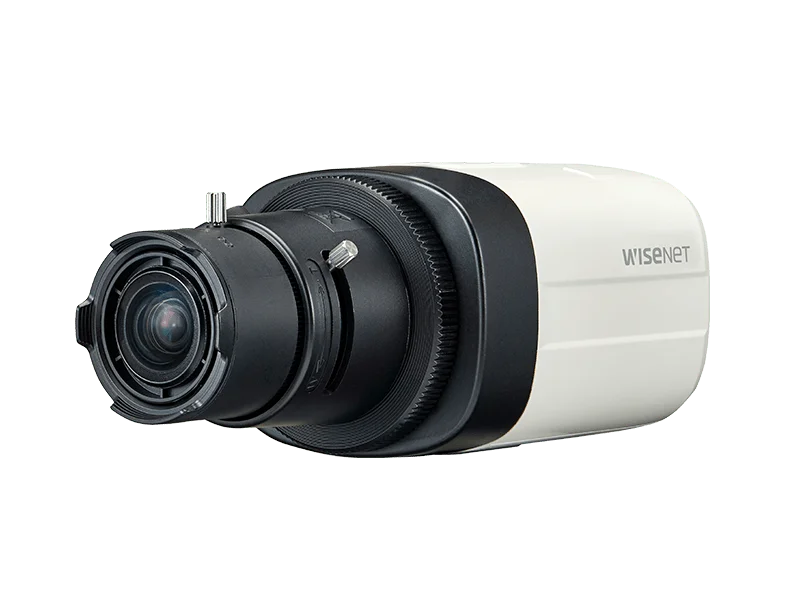

Hanwha Vision HCB-7000A QHD (4MP) Analog Box Security Camera with No Lens
HCB-7000A
QHD (4MP) Analog Box Camera
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W)
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
Product Specification
-
Video
Imaging Device 1/3″ 4MP CMOS Resolution 2560×1440 Max. Framerate 30fps@4M(N), 25fps@4M(P) Min. Illumination Color: 0.16Lux(F1.2, 1/30sec) BW: 0.009Lux(F1.2, 1/30sec) Video Out BNC(AHD), additional CVBS for installation Video Transmission Distance 500m(5C2V Coaxial Cable) Lens
Focus Control Manual Lens Type DC auto iris Mount Type C mount, CS mount Operational
Day & Night Auto(ICR) Backlight Compensation UserBLC, HLC, DWDR Digital Noise Reduction 2DDNR Motion Detection 4 zones Privacy Masking 2 zones Gain Control Low / Middle / High / Very High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) Video Rotation H-Rev/V-Rev Analytics Motion detection Serial Interface RS-485(Samsung-T, Pelco-D/P) Alarm I/O MD Output 1ea Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Input Voltage 24VAC, 12VDC Power Consumption Max 3.6W Mechanical
Color / Material Black / Aluminum, Ivory / Plastic Product Dimensions / Weight 59.6(W)×68.4(H)×92.7(D)mm (2.35″×2.69″×3.65″), 186g(0.41 lb) - • Design and specifications are subject to change without notice.
- • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
