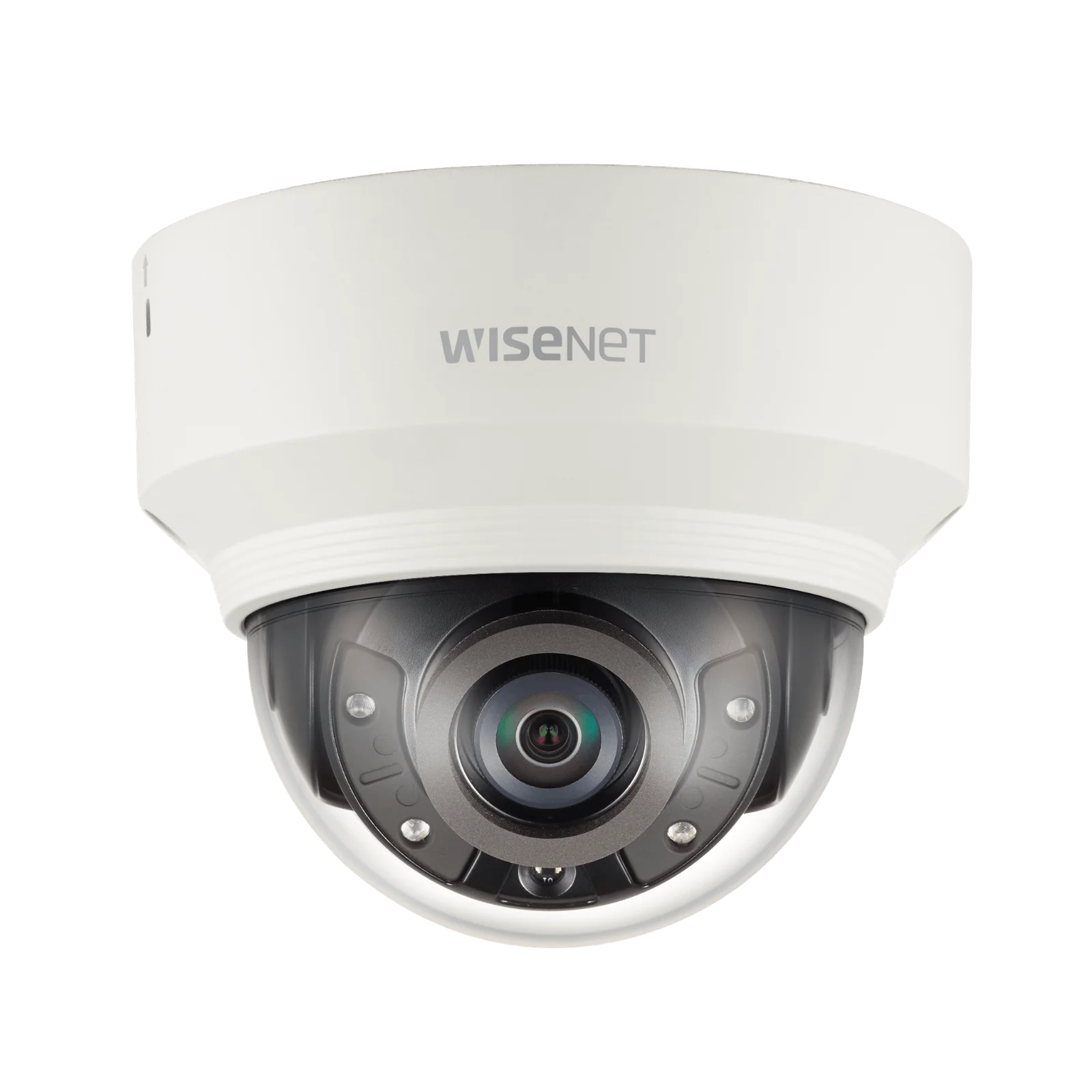

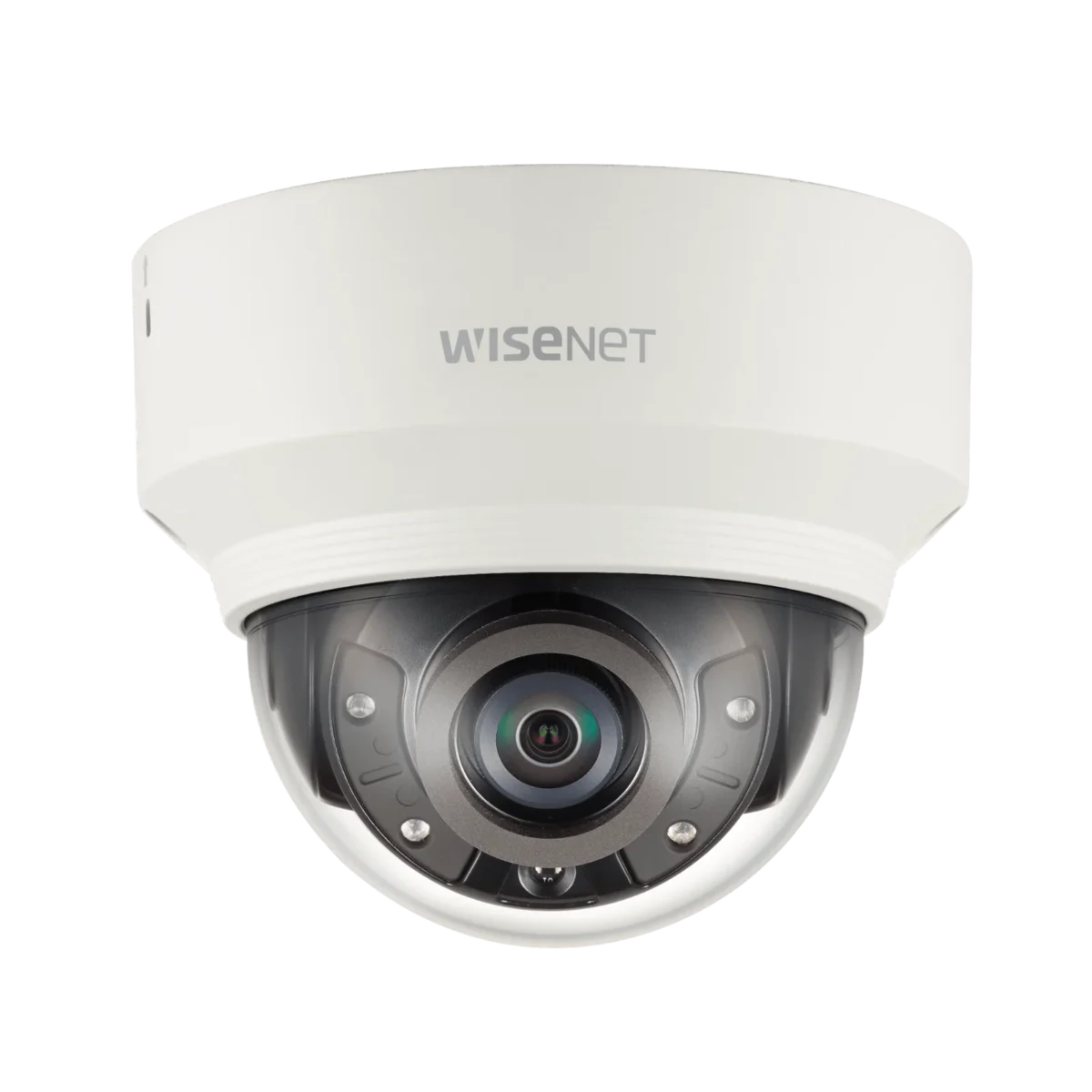

Product Specification

• Video
  Imaging Device		1/1.8″ 6MP CMOS
  Resolution		2560×1920, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
  Max. Framerate		H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  Min. Illumination		Color: 0.16Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on)
  Video Out		CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
  Lens
  Focal Length (Zoom Ratio)		7.0mm fixed focal
  Max. Aperture Ratio		F1.6
  Angular Field of View		H: 50.7°, V: 37.8°, D: 63.8°
  Min. Object Distance		0.4m(1.31ft)
  Lens Type		Fixed
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range		0°~354° / 0°~67° / 0°~355°
  Operational
  Camera Title		Displayed up to 85 characters
  Day & Night		Auto(ICR)
  Backlight Compensation		BLC, HLC, WDR, SSDR
  Wide Dynamic Range		120dB
  Digital Noise Reduction		SSNRⅤ
  Digital Image Stabilization		Support
  Defog		Support
  Motion Detection		8ea, 8point polygonal zones
  Privacy Masking		32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  LDC		Support
  Electronic Shutter Speed		Minimum / Maximum / Anti flicker (2~1/12,000sec)
  Video Rotation		Flip, Mirror, Hallway view(90°/270°)
  Analytics		Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
  Business Intelligence		People counting, Queue management, Heatmap
  Alarm I/O		Input 1ea / Output 1ea
  Alarm Triggers		Analytics, Network disconnect, Alarm input
  Alarm Events		File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset
  Audio In		Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  Audio Out		Line out, Max.output level: 1Vrms
  IR Viewable Length		30m(98.42ft)
  Network
  Ethernet		RJ-45(10/100BASE-T)
  Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
  Audio Compression		G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
  Smart Codec		Manual(5ea area), WiseStreamⅡ
  Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming		Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
  Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  Application Programming Interface		ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
  General
  Web Viewer		Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
  Edge Storage		Micro SD/SDHC/SDXC 2slot 512GB
  Memory		1024MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity		-10°C~+55°C(14°F ~ +131°F) / Less than 90% RH
  Storage Temperature / Humidity		-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
  Certification		IK08
  Input Voltage		PoE(IEEE802.3af, Class3), 12VDC
  Power Consumption		PoE : Max 9W 12VDC : Max. 8W
  Mechanical
  Color / Material		Ivory / Aluminum
  Product Dimensions / Weight		Ø110x90mm(4.33″x3.54″), 380g(0.84 lb)
