Description

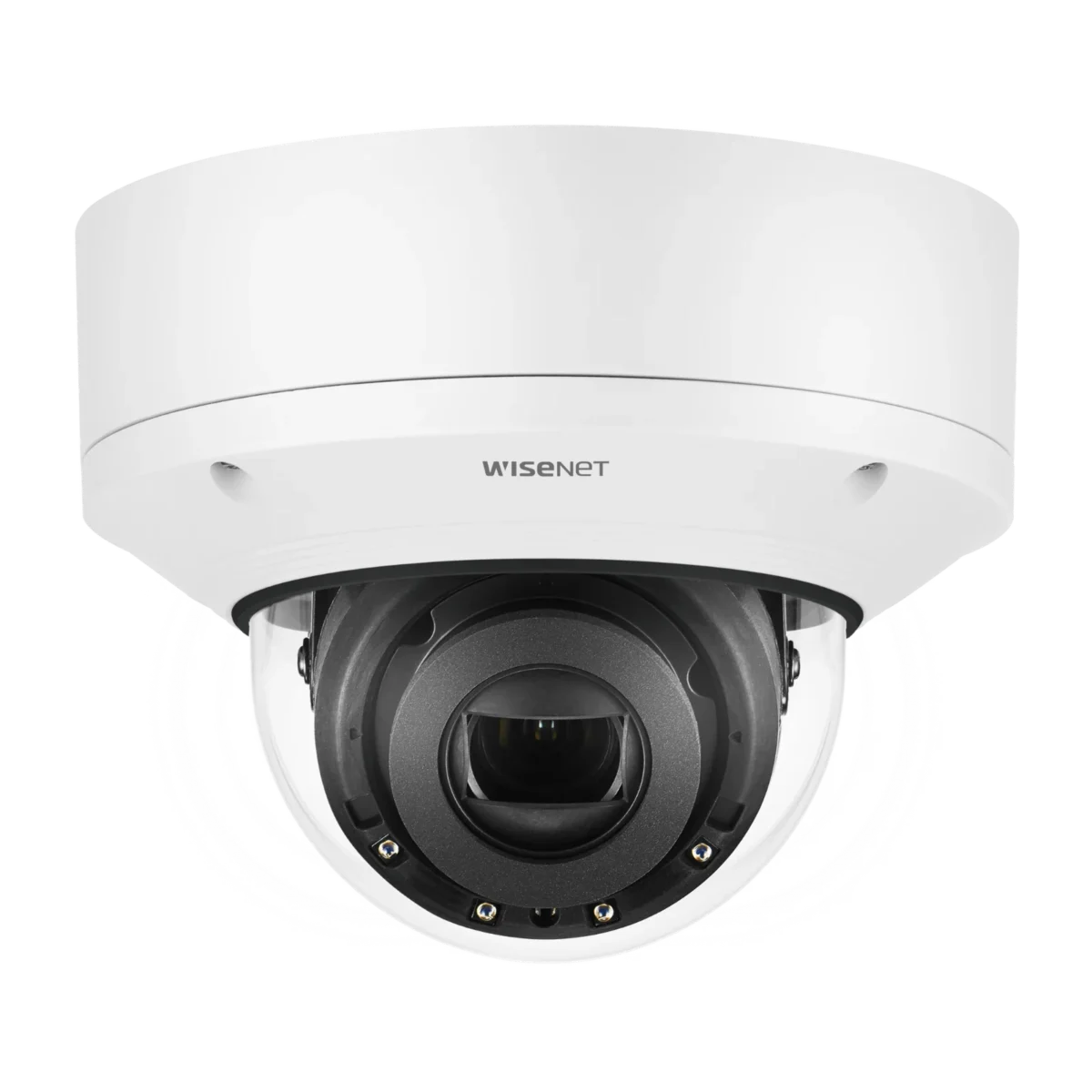

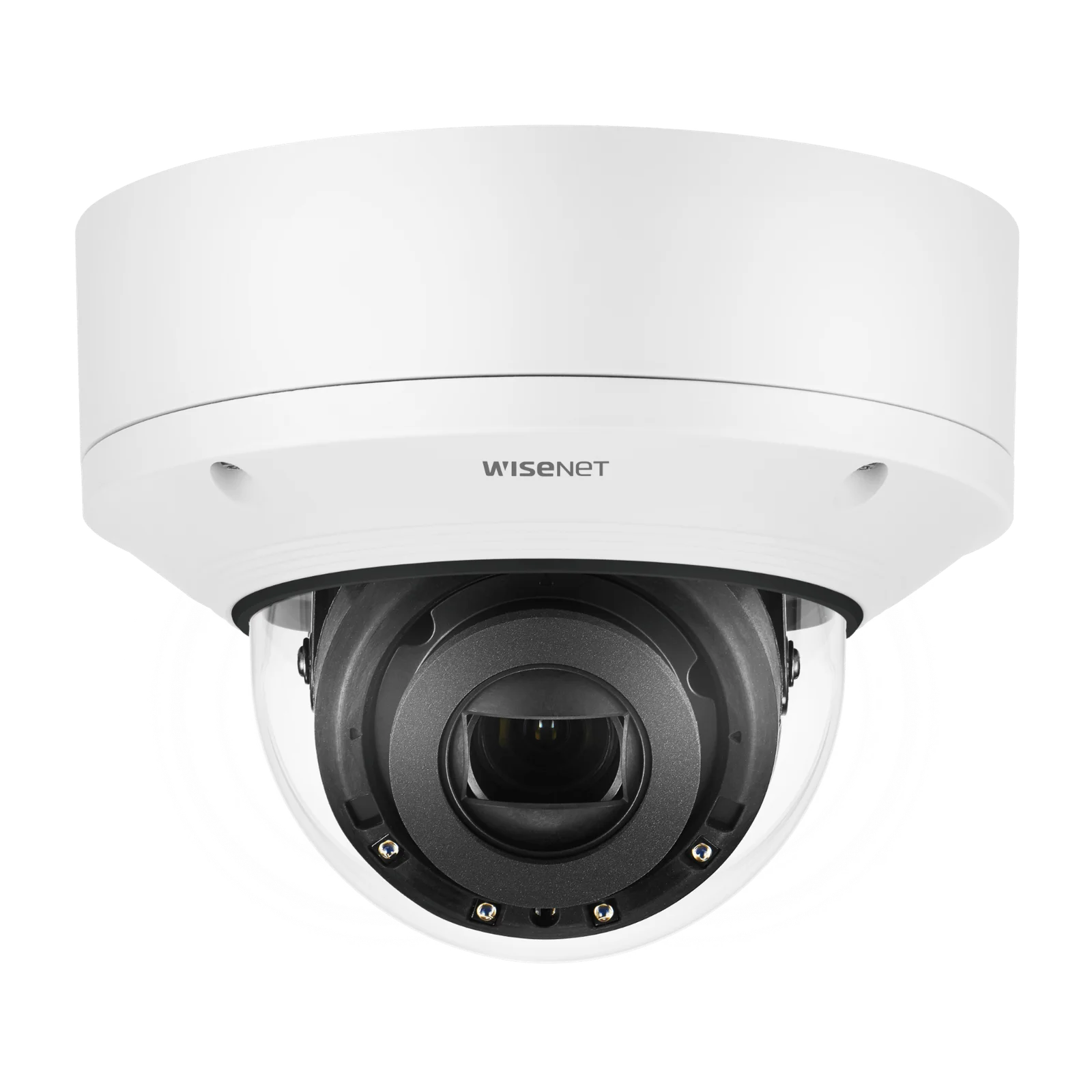

Hanwha Vision XND-6081RV WiseNet X Series 2MP IP52 IK10 PoE Network IP Dome Security Camera with Night Vision 2.8-12mm Lens
Hanwha Vision XND-6081RV IP Dome Camera Overivew
2MP Vandal-Resistant Indoor IR Network Dome Camera
- 2 megapixel (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- 164′ IR viewable range
- 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover, Audio event playback
- Dual SD/SDHC/SDXC memory slots (Max. 512GB)
- Hallway view, WiseStream II support, IP52, IK10
- LDC support (Lens Distortion Correction)
- PoE / 12V DC, Bi-directional audio support
- White camera with ivory skin included
Product Specifications
| Image Sensor |
1/2.8″-Type CMOS
|
| Focal Length |
2.8 to 12mm
|
| Field of View |
Horizontal: 119.5 to 27.9°
Vertical: 62.8 to 15.7° Diagonal: 142.1 to 32° |
| Pan/Tilt |
No
|
| Built-In Microphone |
No
|
| Power I/O |
1x DC
1x RJ45 |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8″-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
Yes
|
Exposure Control
| Minimum Illumination |
0.015 Lux (Color)
0 Lux (Black and White) |
Lens
| Focal Length |
2.8 to 12mm
|
| Optical Zoom Ratio |
4.3x
|
| Field of View |
Horizontal: 119.5 to 27.9°
Vertical: 62.8 to 15.7° Diagonal: 142.1 to 32° |
| Maximum Aperture |
f/1.4 to 3.6
|
Video
| Max IP Streaming |
via RJ45
1920 x 1080 up to 60.00 fps |
| Multi-View Streaming |
Yes, 10 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: 0 to 360°
Vertical: -45 to 85° |
| Pan/Tilt |
No
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log
|
| Supported Protocols |
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, SUNAPI (HTTP API)
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC, ADPCM, G.711, G.726
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
| Memory |
1024 MB RAM / 256 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Defocus Detection, Fog Detection, Face Detection, Motion Detection, Vehicle Detection, Abandoned Object, Object Removal, Entering/Exiting, Loitering, Camera Sabotage/Tampering, Virtual-Line Crossing Detection, Directional Detection, Audio Detection, Sound Classification
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
Power
| Power I/O |
1x DC
1x RJ45 |
| Power Consumption |
PoE: 12.95 W
Power Supply: 10.8 W |
General
| Material of Construction |
Aluminum
|
| Environmental Resistance |
Dust/Water-Resistant (IP52)
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Certifications |
EAC, UL
|
| Operating Conditions |
-13 to 140°F / -25 to 60°C up to 89% Humidity
|
| Storage Conditions |
-58 to 140°F / -50 to 60°CÂ
|
| Illumination |
IR LEDs up to 164′ / 50Â m
|
| Supported Languages |
Czech
Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Spanish Swedish Traditional Chinese Turkish |
| OS Compatibility |
Windows 7 or Later / macOS 10.11 to 10.12
|
| OS Compatibility |
Windows 7 to 10
macOS 10.10 to 10.12 |
| Mobile App Compatible |
No
|
| Dimensions (W x H x D) |
6.3 x 4.9″ / 160 x 125Â mm
|
| Weight |
3.19Â lb / 1450Â g (Body Only)
|
Packaging Info
| Package Weight |
5.535 lb
|
| Box Dimensions (LxWxH) |
13.7 x 9.2 x 8.2″
|
