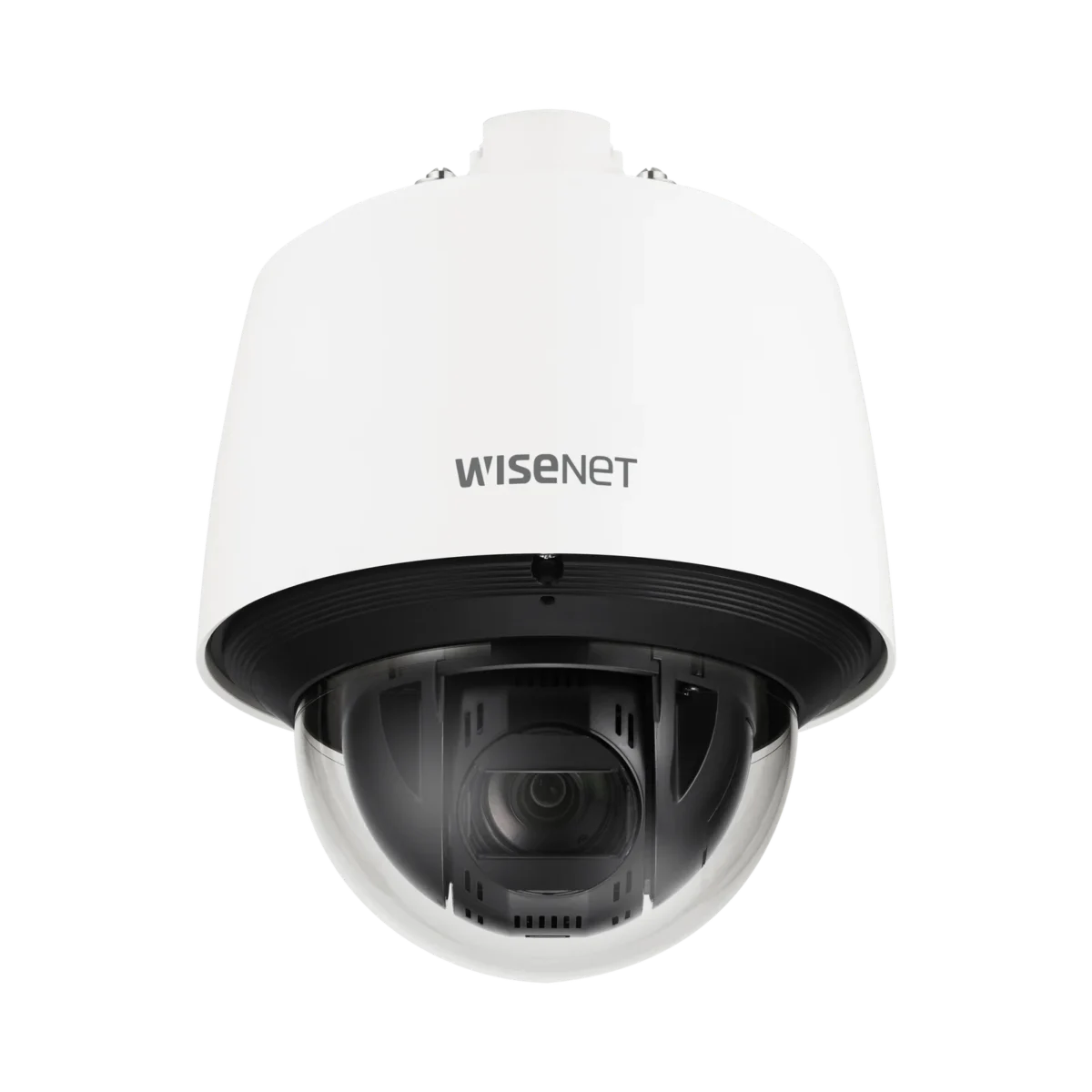

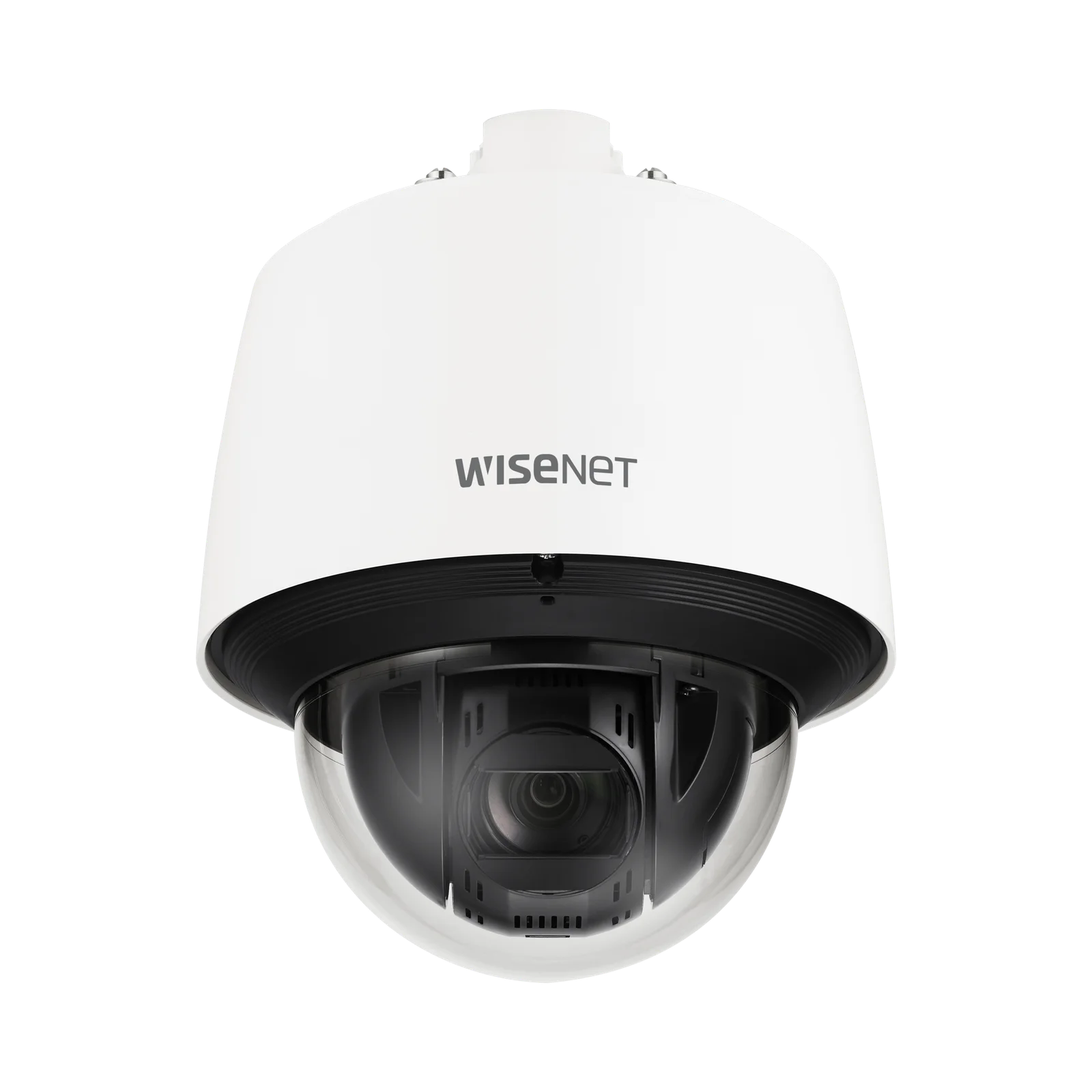

Hanwha Vision QNP-6320H Wisenet Q 2MP H.265 IP66 IK10 NEMA4X Network IR 32x PTZ IP Security Camera 4.44~142.6mm Lens

2,500.00$

Key Features:

Compression : H.265, H.264, MJPEG,
Field of view ( Horizontal) : 64.66°Field of View 2.29° Field of view
Max. FPS and Resolution : 60fps at 1080P
Lens Type : Motorized ( Automatic Zoom) Lens
Lens Size : 4.44~142.6mm Lens
Sensor Type : COMS
Sensor Size : 1/2.8″ Sensor
Protection Code : IP66 IK10 NEMA 4X
Max. Storage Capacity : 256 GB Storage Capacity
Protection Code : IP66 IK10 NEMA 4X
Color : White
Material : Aluminum
Environmental : Outdoor
Sensor Size : 1/2.8″
Aperture : F1.6 F4.4

Out of stock

SKU: QNP-6320H Categories: Hanwha Cameras, Hanwha IP cameras, Hanwha Wisenet Q Series, IP Cameras, ndaa-complaint, Security Cameras Tags: 2MP, 4.44~142.6mm Lens, Built-in Gyro sensor, Color / Material :White / Plastic, Day & Night (ICR), Defog Detection, DIS, Hanwha Techwin, IK10, Intelligent Analytics, IP66, IP67, Lens Type:DC Auto Iris, micro SD, MJPEG codec, NEMA4X, QNP-6320H, WDR, WiseStreamII

Description

Special Order

Hanwha Vision QNP-6320H Wisenet Q 2MP H.265 IP66 IK10 NEMA4X Network IR 32x PTZ IP Security Camera 4.44~142.6mm Lens

Hanwha Vision QNP-6320H IP PTZ Camera Overview

2MP 32x PTZ

Max. 2MP resolution
4.44~142.6mm (32x) lens
Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
Intelligent Analytics
H.264, H.265, MJPEG codec, WiseStreamII
Micro SD/SDHC/SDXC 1slot 256GB
IP66, IK10,

View More Products

Visit our another site

Video
Imaging Device																																																																1/2.8″ CMOS
Resolution																																																																1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate																																																																H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD																																																																None
Pixel Size																																																																None
Min. Illumination																																																																Color: 0.05Lux(F1.6, 1/30sec, 30IRE) BW: 0.005Lux(F1.6, 1/30sec, 30IRE)
Video Out																																																																None
Video Transmission Distance																																																																None
Lens
Focal Length (Zoom Ratio)																																																																4.44~142.6mm(32x) zoom (digital 32x, total 1024x zoom)
Max. Aperture Ratio																																																																F1.6(Wide)~F4.4(Tele)
Angular Field of View																																																																H: 64.66°(Wide)~2.29°(Tele) V: 38.08°(Wide)~1.30°(Tele)
Min. Object Distance																																																																Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)
Focus Control																																																																Oneshot AF, Focus save
Lens Type																																																																DC auto iris
Mount Type																																																																None
Optional Lens																																																																None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range																																																																None
Pan Range																																																																360° Endless
Pan Speed																																																																Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
Tilt Range																																																																105°(0°~105°)
Tilt Speed																																																																Preset: 300°/sec, Manual: 0.024°/sec~200°/sec
Rotate Range																																																																None
Sequence																																																																Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy																																																																±0.2°
Operational
Camera Title																																																																Displayed up to 85 characters
Direction Indicator																																																																Support
Day & Night																																																																Auto(ICR)
Backlight Compensation																																																																BLC, HLC, WDR, SSDR
Wide Dynamic Range																																																																120dB
Digital Noise Reduction																																																																SSNRⅤ
Digital Image Stabilization																																																																Support(built-in gyro sensor)
Defog																																																																Support
Motion Detection																																																																8ea, 8point polygonal zones
Privacy Masking																																																																32ea, 4point quadrangle zones – Color: Grey/Green/Red/Blue/Black/White – Solid/Mosaic
Gain Control																																																																Low / Middle / High
White Balance																																																																ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
LDC																																																																None
Electronic Shutter Speed																																																																Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital PTZ																																																																None
Video Rotation																																																																Flip, Mirror
Analytics																																																																Analytics events – Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line * Audio detection(Via optional I/O box SPM-4210)
Business Intelligence																																																																None
Serial Interface																																																																None
Alarm I/O																																																																None
Alarm Triggers																																																																Analytics, Network disconnect * Alarm input((Via optional I/O box SPM-4210)
Alarm Events																																																																When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) * Alarm output / Audio clip playback(Via optional I/O box SPM-4210)

Network
Ethernet																																																																Metal shielded RJ-45(10/100BASE-T)
Video Compression																																																																H.265/H.264: Main/High, MJPEG
Audio Compression																																																																None
Smart Codec																																																																Manual(5ea area), WiseStreamⅡ
Video Quality Adjustment																																																																H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control																																																																H.264/H.265: CBR or VBR MJPEG: VBR
Streaming																																																																Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol																																																																IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205
SIP support (VoIP, Peer-to-peer, SIP/PBX integration)																																																																None
Security																																																																None
Application Programming Interface																																																																ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Security
OS / Firmware Protect																																																																Firmware encryption
User authentication																																																																Digest Authentication, Privent brute-force attack
Network authentication																																																																802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication																																																																HTTPS, SRTP, WSS(Websocket secure)
Access Control																																																																IP address filtering
Data Protect																																																																Authentication information encryption, ZIP compression encryption
Audit																																																																User Access/System/Event log
Device ID																																																																Device Certificate(Hanwha Techwin Root CA, pre-installed)
Secure Storage																																																																None
Security Certificate																																																																None
General
Webpage Language																																																																English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer																																																																None
Edge Storage																																																																Micro SD/SDHC/SDXC 1slot Max. 256GB
Memory																																																																1GB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity																																																																-35°C~+55°(-31°F ~ +131°F) * Start up should be done at above -30°C 0~95% RH(non-condensing)
Storage Temperature / Humidity																																																																-50°C~+60°C(-58°F~+140°F) / 0~95% RH
Certification																																																																IP66, IK10, NEMA4X
Input Voltage																																																																PoE+(IEEE802.3at, Class4)
Power Consumption																																																																PoE+: Max. 23W, typical 14W
Mechanical
Color / Material																																																																Body : White / Aluminum Head : Black / Polycarbontate
RAL Code																																																																RAL9003
Product Dimensions / Weight																																																																ø204.3x265mm(ø8.04×10.43”), 2700g(5.95lb)

Additional information

Weight	6 lbs
Dimensions	9 × 9 × 11 in
Resolution	2MP
Brands	Hanwha Techwin
Color	White
Environmental	Outdoor
Lens-type	Motorized (Automatic Zoom) Lens
Compression	H.264, H.265, MJPEG
Camera Style	PTZ
Security-camera	security camera
