Description
Hanwha Vision QNO-7022R Wisenet Q 4MP H.265 PoE IP66 IK10 Network IR Bullet IP Security Camera with 4mm Lens Night Vision

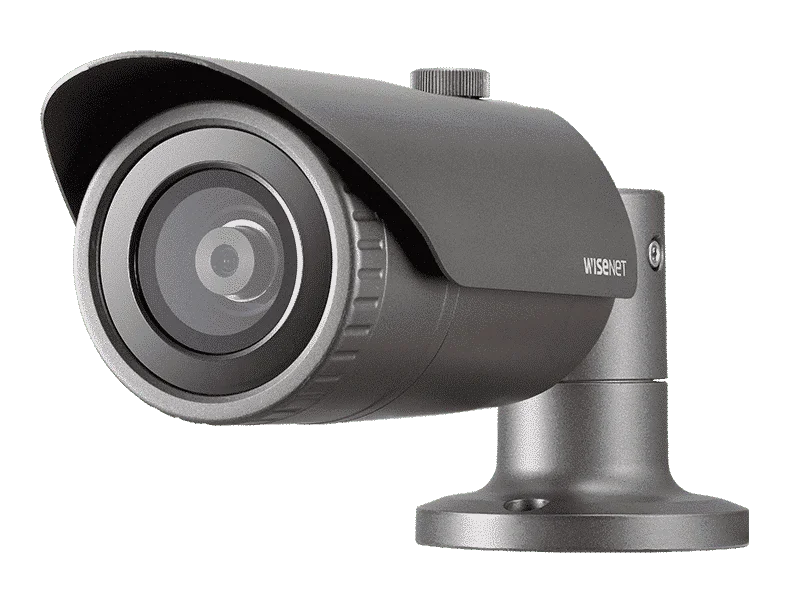

Hanwha Vision QNO-7022R IP Bullet Camera
4MP Network IR Bullet Camera with 3.6mm Lens
- 4MP resolution
- Built-in 3.6mm fixed lens
- 30fps@4MP (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 25m, IP66, IK10
- Hallway view support
- LDC support (Lens Distortion Correction)
- WiseStream II
Product Specification
| Image Sensor |
1/3″-Type CMOS
|
| Focal Length |
4mm
|
| Field of View |
Horizontal: 78.2°
Vertical: 41.2° Diagonal: 92° |
| Output Formats |
Composite:
720 x 480 |
| Pan/Tilt |
No
|
| Video I/O |
1x BNC (Composite) Output
|
| Power I/O |
1x DC
1x RJ45 |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/3″-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
Yes
|
| DORI Coverage |
With 4mm Lens:
Detect: Up to 206.7′ / 63.0 m Observe: Up to 82.68′ / 25.20 m Recognize: Up to 41.34′ / 12.60 m Identify: Up to 20.67′ / 6.30 m |
Exposure Control
| Minimum Illumination |
0.15 Lux (Color)
0 Lux (Black and White) |
Lens
| Focal Length |
4mm
|
| Field of View |
Horizontal: 78.2°
Vertical: 41.2° Diagonal: 92° |
| Maximum Aperture |
f/1.6
|
Video
| Automatic Gain Control |
Yes
|
| Output Formats |
Composite:
720 x 480 |
| Max IP Streaming |
via RJ45
2560 x 1440 up to 30.00 fps |
| Multi-View Streaming |
Yes, 3 Streams
|
Control
| Pan/Tilt |
No
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log
|
| Supported Protocols |
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, SUNAPI (HTTP API)
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum]
|
| Video I/O |
1x BNC (Composite) Output
|
| Other I/O |
1x RJ45
1x BNC |
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
G.711, G.726
|
| Memory |
512 MB RAM / 256 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Defocus Detection, Directional Detection, Motion Detection (4-Zones), Entering/Exiting, Camera Sabotage/Tampering, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
Power
| Power I/O |
1x DC
1x RJ45 |
| Power Consumption |
Power Supply: 9.1 W
PoE: 10.7 W |
General
| Material of Construction |
Aluminum
|
| Environmental Resistance |
Dust/Water-Resistant (IP66)
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Operating Conditions |
-40 to 131°F / -40 to 55°C up to 95% Humidity
|
| Startup Temperature |
-22°F / -30°C
|
| Storage Conditions |
-40 to 140°F / -40 to 60°C
|
| Illumination |
IR LEDs up to 82′ / 25 m
|
| Supported Languages |
Czech
Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Turkish |
| OS Compatibility |
Computer: Windows / macOS / Linux / Chrome OS
Mobile: Android/iOS |
| OS Compatibility |
Windows
macOS Linux Chrome OS |
| Mobile App Compatible |
Yes: Android & iOS
|
| Dimensions (W x H x D) |
2.8 x 9.7″ / 70 x 246 mm
|
| Weight |
1.5 lb / 700 g (Body Only)
|
Packaging Info
| Package Weight |
2.27 lb
|
| Box Dimensions (LxWxH) |
12 x 5 x 4.7″
|
