Description
Hanwha Vision PNM-7082RVD 2CH POE+ 2MP H.265 IP66 Ik10 2-Sensor NEMA4X outdoor Network Vandal Dome IP Security Camera 3~6mm Lens

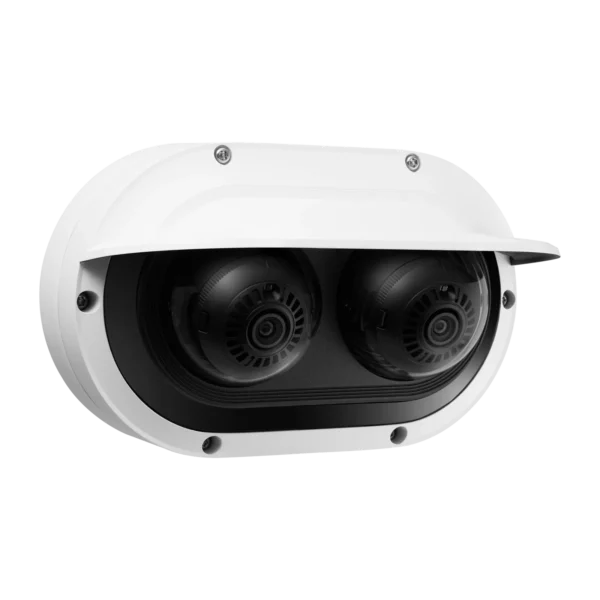

Hanwha Vision PNM-7082RVD IP Dome Camera Overview
2MP X 2 IR Outdoor Dome Camera
- The PNM-7082RVD is an outdoor vandal-rated network camera featuring 2 Channels, with IR in a dome camera form factor
- Featuring 2MP X 2 sensors, each at 30fps with a 3~6mm (2x) (107°~56.3°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG).
- The IR viewable length is 25m (82ft), and features a USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, & Handover.
- License-free intelligent video analytics IVA (Virtual line/direction, Enter/Exit, Loitering, Intrusion, Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification (with optional I/O Box).
- FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10. Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble.
Video |
|
|---|---|
| Imaging Device | 1/2.8″ CMOS x 2CH |
| Resolution | 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: 2MP Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.035lux(F2.2, 1/30sec, 30IRE) BW: 0.0035lux(F2.2, 1/30sec, 30IRE), 0lux(IR LED on) |
| Video Out | USB: micro USB Type B, 1280×720 for installation |
Lens |
|
| Focal Length (Zoom Ratio) | 3~6mm(2x) motorized varifocal |
| Max. Aperture Ratio | F2.2(Wide)~F3.1(Tele) |
| Angular Field of View | H: 107˚(Wide)~56˚(Tele) V: 57˚(Wide)~31˚(Tele) D: 126˚(Wide)~64˚(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed IRIS |
Pan / Tilt / Rotate |
|
| Pan / Tilt / Rotate Range | 0~355° / 0~78° / 0~180° |
Operational |
|
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | WiseNR, SSNRⅤ |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Off / Max gain / Manual |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) (Hallway view can only be applied to both channels simultaneously) |
| Analytics | Analytics events* – Defocus detection, Motion detection, Tampering, Virtual line(Crossing/Direction), Virtual area(Loitering/Enter/Exit) * Support Audio detection, Sound classification via optional SPM-4210 I/O box |
| Alarm I/O | * Support Alarm via optional SPM-4210 I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) – Alarm output via optional SPM-4210 I/O box |
| Audio In | * Audio in via optional SPM-4210 I/O box |
| Audio Out | * Audio out via optional SPM-4210 I/O box |
| IR Viewable Length | 15m(49ft) 25m(82ft) based on scene |
Network |
|
| Ethernet | Metal shielded RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Open platform |
General |
|
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 512GB |
| Memory | 4GB RAM, 512MB Flash |
Environmental & Electrical |
|
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing) * Start up should be above at -35˚C |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing) |
| Certification | IP66/IP67, NEMA4X, IK10 |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | PoE+: Max 17W, typical 12.5W |
Mechanical |
|
| Color / Material | White / Aluminum Hard-coated dome bubble |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 215(W)x135(D)x93.2(H)mm(8.46″x5.31″x3.67″) / 1330g |
