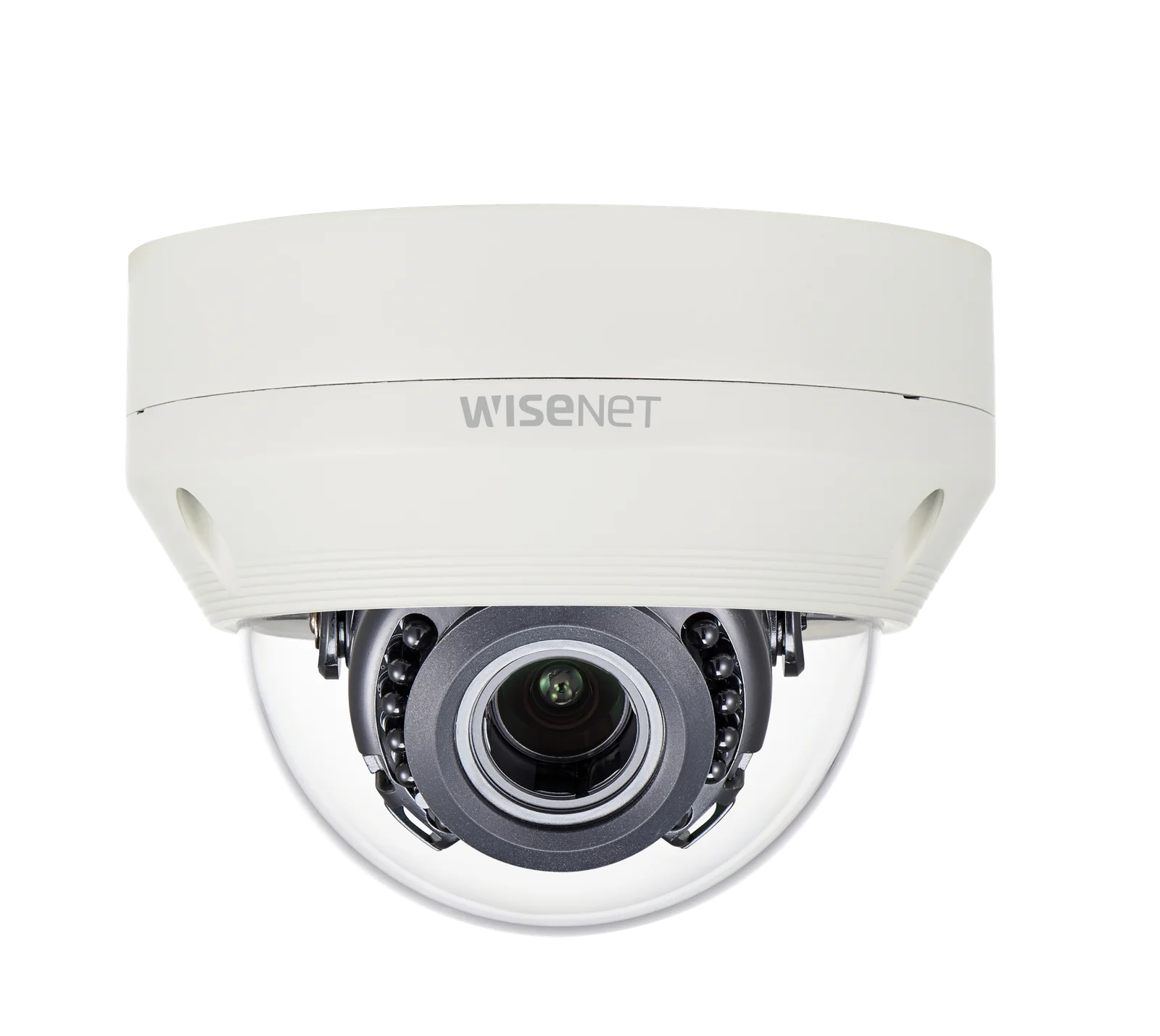

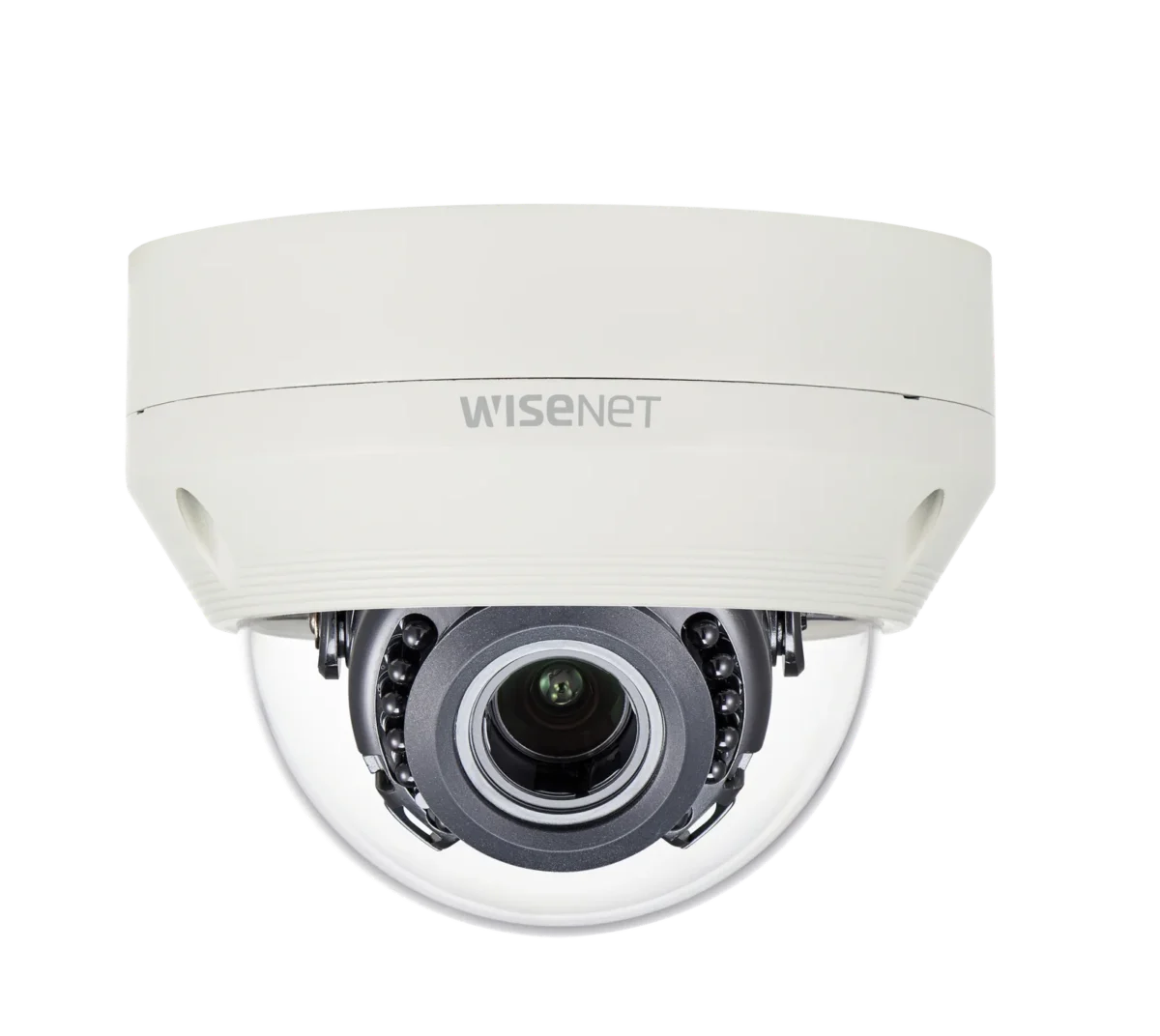

Hanwha Vision HCV-7070RA QHD 4MP Analog HD+ IP IR Dome Security Camera
Hanwha Vision HCV-7070RA Analog HD+ Dome Camera
Pentabrid compatible
QHD (4MP) Analog Vandal-Resistant IR Dome Camera
- Field of View (Horizontal) : 93°Field of View
- Lens Type : Varifocal (Manual Zoom) Lens
- Lens Size : 3.2~10mm Lens
- Protection Code : IP66 IK10
- Color : White
- Environmental : Outdoor
Product Specification
-
-
Video
Imaging Device 1/3″ 4MP CMOS Resolution 2560×1440 Max. Framerate 30fps@4M(N), 25fps@4M(P) Min. Illumination Color: 0.16Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)Video Out BNC(AHD), additional CVBS for installation(2Pin connector type) Video Transmission Distance 500m(5C2V Coaxial Cable) Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) manual varifocal Max. Aperture Ratio F1.6 Angular Field of View H: 93.48°(Wide)~29.44°(Tele), V: 50.47°(Wide)~16.64°(Tele), D: 112.53°(Wide)~33.7°(Tele) Min. Object Distance 0.5m(1.64ft) Focus Control Manual Lens Type DC auto iris Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~63° / 0°~355° Operational
Day & Night Auto(ICR) Backlight Compensation UserBLC, HLC, DWDR Digital Noise Reduction 2DDNR Motion Detection 4 zones Privacy Masking 2 zones Gain Control Low / Middle / High / Very High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) Video Rotation H-Rev/V-Rev Analytics Motion detection Alarm I/O MD Output 1ea IR Viewable Length 30m(98.43ft) Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Certification IP66, IK10 Input Voltage 24VAC, 12VDC Power Consumption Max 5.8W Mechanical Color / Material Ivory / Aluminum Product Dimensions / Weight Ø137.0×106.1mm(Ø5.39”x4.18”), 715g(1.58 lb) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
